Shop FLUKE

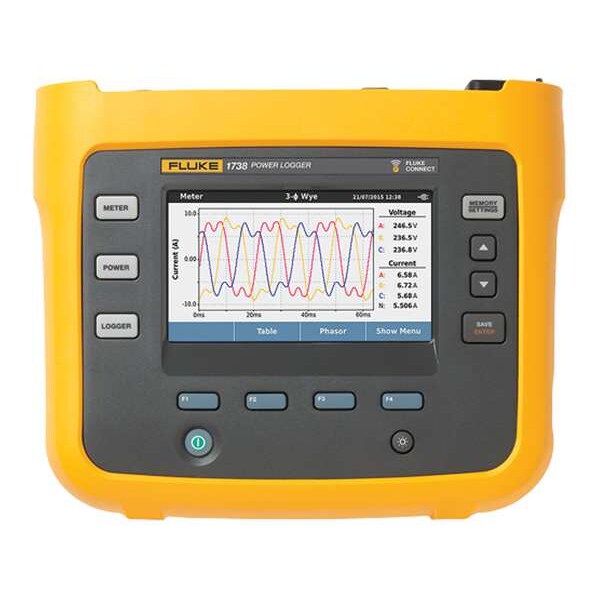

Pwr Quality Anlyzr Kit, 53rd Harmonic Cap

  • Mfr # FLUKE-1738/B/WWG

  • Zoro # G3317015

product price:  $8,868.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
10.24 kHz
Phase
3
Includes
(4) Alligator Clips, (4) Magnetic Voltage Probes, 1738 Power Logger, Color Coding Set, Energy Analyze Plus Software, Line Cords, Magnetic Hanging Strap, Power Supply, Soft case, Voltage Test Leads
Max. Watts
1,000 TW
Kit Current Capability
3,000 A Probe and 6,000 A Probe, Optional 4/40 A Probes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-1738/B/WWG
Zoro #
G3317015
UPC #
095969810791
Country of Origin
Romania

Dimensions

Manufacturers Warranty Length
2 yr

Details

Item
Power Logger
Sampling Rate
10.24 kHz
Phase
3
Includes
(4) Alligator Clips, (4) Magnetic Voltage Probes, 1738 Power Logger, Color Coding Set, Energy Analyze Plus Software, Line Cords, Magnetic Hanging Strap, Power Supply, Soft case, Voltage Test Leads
Max. Watts
1,000 TW
Kit Current Capability
3,000 A Probe and 6,000 A Probe, Optional 4/40 A Probes
Display
Color LCD Touch Screen
Max. AC Voltage
1,000
Current Accuracy
+/-1%
Storage
2 GB
Calibration Certificate
Included
Voltage Channels
4
Safety Rating
CAT III 1000V, CAT IV 600V
Harmonic Capture Range
50th
Display Resolution
480 x 272
AC Response
5 kHz
Max. AC Amps
6,000 A
Power Factor
-1 to 1
Current Channels
4
Min. Transient Duration
20uS
Peak Capture
No
Voltage Accuracy
+/-0.2%
Data Logging
Yes
Crest Factor
Less Than 3
Max. VA
1,000 TVA
Calibration Frequency
42.5 to 69 Hz
Communication Protocol
Bluetooth, USB-A, USB-Mini, Wi-Fi
For Phase
Single, Split, Three
Maximum AC Current Measured
6,000 A
IP Rating
IP50
Minimum Operating Temperature
14 Degrees F
Maximum Operating Temperature
122 Degrees F
Maximum AC Voltage Measured
1,000 V
Testing Functions
Current, Energy, Phase Load, Power, Power Factor, Voltage
Alert Type
Light
Display Type
Digital
Maximum DC Voltage Measured
1,000 V
AC Magnitude Calculation
True RMS
Input Impedance
10 megaohm
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Power Source
Battery, Measurement Line, Wire Leads
Calibration Certificate Included
NIST Not Traceable
Maximum Wattage
1,000 TW
Data Output Type
Bluetooth, USB, Wi-Fi
Power Source - TS Only
Battery, Measurement Line, Wire Leads

Description

Power Logger, Calibration Certificate NIST, Current Channels 4, For Phase Single; Split; Three, Includes (4) Alligator Clips, (4) Magnetic Voltage Probes, 1738 Power Logger, Color Coding Set, Energy Analyze Plus Software, Line Cords, Magnetic Hanging Strap, Power Supply, Soft case, Voltage Test Leads, Maximum AC Current Measured 6,000 A, Peak Capture No, Power Factor -1 to 1, Voltage Channels 4, Calibration Frequency 42.5 to 69 Hz, Communication Protocol Bluetooth, USB-A, USB-Mini, Wi-Fi
