  5. Thermal Camera, -4 Degrees to 1022 Degrees F, 40 mK, 640 x 480 Display, 3.5 in LCD Display

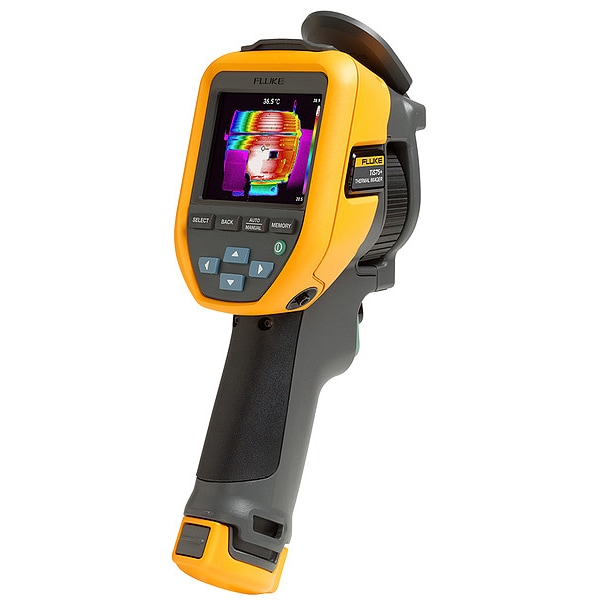

Fluke Thermal Camera, -4 Degrees to 1022 Degrees F, 40 mK, 640 x 480 Display, 3.5 in LCD Display FLK-TIS75+ 27HZ - main

Thermal Camera, -4 Degrees to 1022 Degrees F, 40 mK, 640 x 480 Display, 3.5 in LCD Display

  • Mfr # FLK-TIS75+ 27HZ

  • Zoro # G000422595

product price:  $6,979.99
/ea
Free Shipping & Returns

Key Features

Field of View
42 Degrees x 30 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 1022 Degrees
Features
Dew-Point Calculation
Thermal Sensitivity
40 mK
Focus Method
Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLK-TIS75+ 27HZ
Zoro #
G000422595
UPC #
095969946308
Country of Origin
China

Dimensions

Display Size
3.5 in
Manufacturers Warranty Length
2 yr
Manufacturer Warranty Length
2 yr

Details

Item
Thermal Camera
Field of View
42 Degrees x 30 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 1022 Degrees
Features
Dew-Point Calculation
Thermal Sensitivity
40 mK
Focus Method
Manual
Display Resolution
640 x 480
Visual Light Resolution
5 MP
File Formats
BMP, GIF, IS2, JPEG, PNG, TIFF
Removable Memory Card
4GB MicroSD
Includes
Two-Bay Battery Charger
Standards
47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249, IEC 61010-1: Pollution Degree 2, IEC 61326-1: Portable Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A, RCM IEC 61326-1
Wireless
Yes
Thermal and Visible Light Blending
Yes
Detector Resolution - Infrared
320 x 240 Pixels
Temp. Accuracy (F) - Infrared
+/-2.0%
Focus Distance - Infrared
Minimum of 0.15 m
Included Charger
Yes
Temp. Accuracy (C) - Infrared
+/-2.0%
Display Resolution - IR Camera
320 x 240 Pixels
NIST Certified
No
Multiple Lens Option
Yes
Ambient Temp. Range (F)
14 Degrees to 122 Degrees
Image Notation
Voice
Alarm
Yes
Articulating Lens
No
Temp. Range (C) - Infrared
-20 Degrees to 550 Degrees
Safety Rating
EN 61010-1: CAT None; Pollution Degree 2; EN 60825-1: Class 2; EN 60529; EN 62133
Display - IR Camera
3.5 in LCD
Picture In Picture
Yes
Charger Replacement
TI-SBC3B
Laser Sighting
Yes
Frame Rate - IR Camera
27 Hz
Digital Display Screen Type
LCD Touchscreen
Data Transfer Type
Wireless
Minimum Operating Temperature Degrees F
14 Degrees F
Portability
Handheld
Emissivity Adjustability
Adjustable
Batteries Included
Yes
Calibration Certificate Type
Available Separately
Laser Sighting Type
Single Dot
Auto Power Off
No
Accuracy Degrees F
+/-2.0% of Reading
Maximum Emissivity Setting
1.00
Minimum Temperature Measured Degrees F
-4 Degrees F
Interface
Wireless
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Maximum Operating Temperature Degrees F
122 Degrees F
Frame Rate
9 Hz, 27 Hz
Maximum Temperature Measured Degrees F
1,022 Degrees F
Battery Chemistry
Lithium Ion
Alert Type
Digital Display, Sound
Maximum Temperature Measured Degrees C
50 Degrees C
Infrared Resolution
384 x 288
Minimum Temperature Measured Degrees C
-20 Degrees C
Lens Angles Included
42 Degrees
Battery Run Time
3.5 hr
Minimum Focus Distance
0.15 m
Number of Batteries Required
1
Minimum Emissivity Setting
0.01
Shop By
Hot Buys

Description

Thermal Camera, Frame Rate 9 Hz, 27 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Sound, Data Transfer Type Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 40 mK, Minimum Focus Distance 0.15 m, Minimum Operating Temperature Degrees F 14 Degrees F, Minimum Temperature Measured Degrees F -4 Degrees F
