Fluke

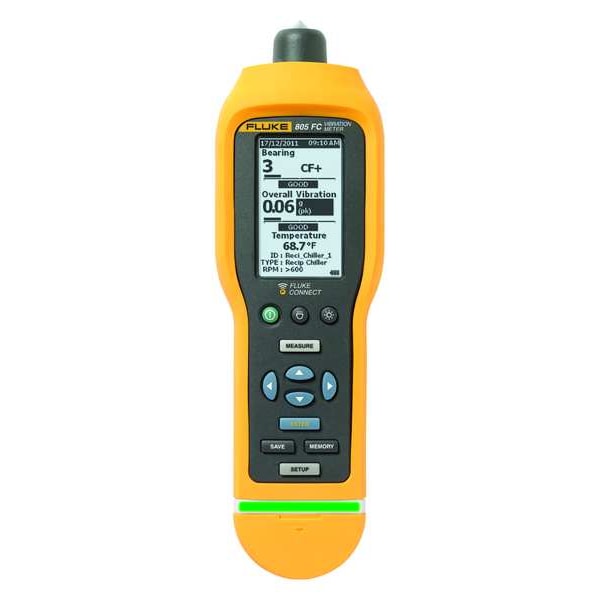

Vibration Meter, Fluke Connect(TM)

product price: $2,890.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • Acceleration Range 0 to 50g
  • Frequency Range (Hz) 10 to 1000/4000 to 20,000
  • Temp. Range (F) -4 Degrees to 122 Degrees
  • Velocity 0 to 307.24 in/sec
See all product information

Product Information

  • Brand Fluke
  • MFR # FLUKE-805 FC
  • Zoro # G9989786
  • UPC #
    095969782814
  • Country of Origin United States
  • Category Vibration Meters

Dimensions

Manufacturers Warranty Length 1 yr
Battery Size AA
Manufacturer Warranty Length 1 yr

Details

Promotion Restriction Not eligible for promotion
Item Vibration Meter
Acceleration Range 0 to 50g
Frequency Range (Hz) 10 to 1000/4000 to 20,000
Temp. Range (F) -4 Degrees to 122 Degrees
Velocity 0 to 307.24 in/sec
Bearing/Gear Check Yes
Temp. Range (C) -20 Degrees to 50 Degrees

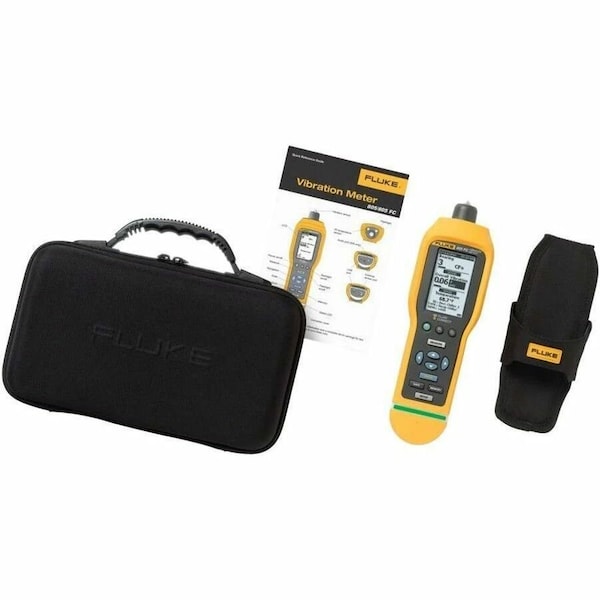

Includes Belt Holster, Carrying Case, USB Cable
Battery Type (2) AA
Data Hold Up to 3500 Records
Special Features 4-Level Severity Scale for Machine Health (Low-Frequency) and Also for Bearing Health (High-Frequency), Non-Contact IR Thermometer From -20 to 200 Degrees C
Auto Power Off Yes
Interface USB
Calibration Certificate No
Display Graphical Monochrome LCD
Accuracy +/-5%
Battery Chemistry Lithium Ion
Battery Run Time 250 hr
Alert Type Vibration
Acceleration Measurement - Minimum 0.01 g
Minimum Operating Temperature -4 Degrees F
Maximum Velocity Measured 1.77 in/sec
Maximum Operating Temperature 122 Degrees F
Digital Display Screen Type LCD
Acceleration Max Resolution 0.01 g
Testing Functions Acceleration, Displacement, Velocity
Number of Records Stored 3,500
Velocity Max Resolution 0.01 in/sec
Calibration Certificate Type Not Certified
Minimum Velocity Measured 0.01 in/sec
Batteries Included Yes
Acceleration Measurement - Maximum 50 g
Number of Batteries Required 2
Frequency Ranges 10 to 1,000 Hz (Low), 4,000 to 20,000 Hz (High)
Displacement Max Resolution 0.01 in

Description

Vibration Meter, Accuracy +/-5 Percent, Acceleration Measurement - Minimum 0.01 g, Acceleration Measurement - Maximum 50 g, Number of Records Stored 3,500, Maximum Velocity Measured 1.77 in/sec, Minimum Velocity Measured 0.01 in/sec, Acceleration Max Resolution 0.01 g, Displacement Max Resolution 0.01 in, Maximum Displacement Measured Not Applicable, Minimum Displacement Measured Not Applicable, Velocity Max Resolution 0.01 in/sec, Auto Power Off Yes, Batteries Included Yes
