Shop FLUX PUMPS

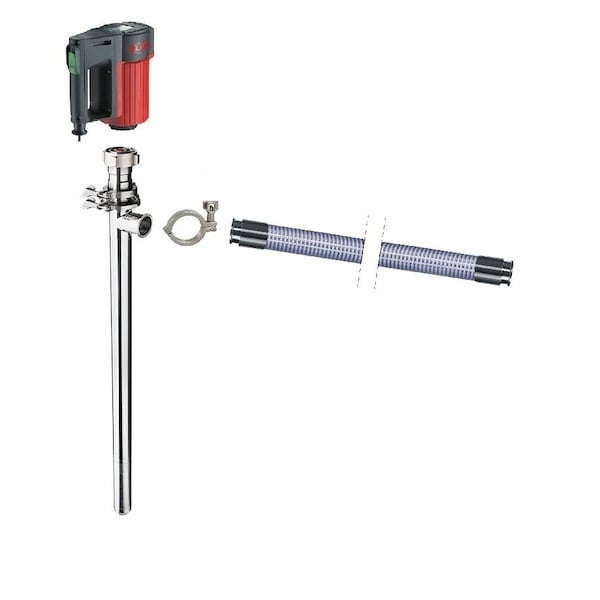

Drum Pump Tube, Stainless Steel, 47in Long, Motor 120V, 60Hz, 1ph 800 Watts Power

  • Mfr # 24-ZORO0325

  • Zoro # G711628569

product price:  $9,926.99
/ea
Free Shipping & Returns

Key Features

For Use With
Sanitary/Food/Pharmaceutical Service, High Viscosity Products
Includes
Pump Tube, 120V, 60Hz, 1ph Motor, Hose
Max. Viscosity
500 - 30,000 cps
Motor Type
Electric
Outlet Size
2 inch tri clamp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24-ZORO0325
Zoro #
G711628569
UPC #
-
Country of Origin
Germany

Dimensions

Outlet Size
2 inch tri clamp
Power Cord Length (Ft.)
16 ft long with plug
Hose Length
47 inch (1000 mm)
For Container Size
Totes / IBC tanks or smaller
Outside Diameter
2.01 inch (53 mm)

Details

For Use With
Sanitary/Food/Pharmaceutical Service, High Viscosity Products
Includes
Pump Tube, 120V, 60Hz, 1ph Motor, Hose
Max. Viscosity
500 - 30,000 cps
Motor Type
Electric
Motor Enclosure
Polypropylene
Max. Flow GPM
12 gpm
Max. Pressure
116 psi
Amps
7.5
Weight
29 Lbs
Motor Power
800 Watts
Material
316 S.S.

Description

F570-1200-FKMc-FKM-SP-TS-R52-PTFE-G16, 47in pump tube with F457 motor 120V, 60Hz, 1ph, 800 Watts power, 9 ft PVC hose. For high viscosity applications. For sanitary, food, pharmaceutical applications. FLUX F570-1200-FKMc-FKM-SP-TS-R52-PTFE-G16, 47in drum pump in S.S./FKM construction, for use in totes/IBCs or smaller containers. Includes F457 motor 120V, 60Hz, 1ph, 800 Watts power, 2 inch tri clamp discharge, 9 ft PVC hose assembly, tri clamps. Details: 1200 mm 39in tube length for use in totes/IBCs or smaller containers, 53 mm 2.1in tube OD, progressive cavity pump, mechanical seal, PTFE stator, Max flow: 12 GPM*, Max pressure: 116 psi*, Viscosity 500 - 30,000 cPs Max, Temp range: 32 Degrees F - 212 Degrees F. Max temp 150 Degrees F when used with PVC hose.. *As tested with water at 68 Degrees F at pump outlet with full, open discharge +/- 10%; Max pressure measured with closed outlet. Performance will vary based on type of liquids or products being transferred., Hose. For High Viscosity Products
