Shop All Regenerative Blowers
Fuji Electric

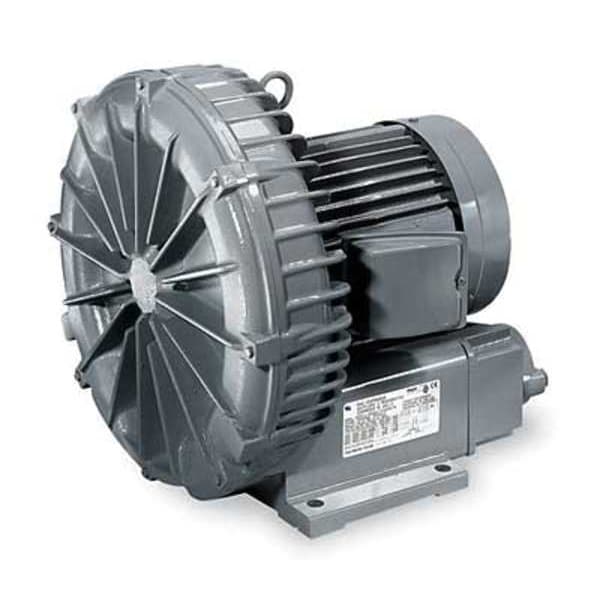

Regenerative Blower, 0.17 HP, 27 CFM

product price: $749.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Pressure 27.5 in WC
  • Max. Flow Rate 27 cfm
  • Max. Vacuum 26 in WC
  • Voltage 115/230V AC
  • Full Load Amps 1.5/.75
See all product information

Product Information

Dimensions

Inlet Size 1 in
Outlet Size 1 in
Overall Height 8.5 in
Overall Depth 7.87 in
Overall Length 8.34 in

Details

Item Ring Compressor
Max. Pressure 27.5 in WC
Max. Flow Rate 27 cfm
Max. Vacuum 26 in WC
Voltage 115/230V AC
Full Load Amps 1.5/.75
Phase Single
Housing Material Aluminum
Max. Ambient Temp. 104 Degrees F
Thermal Protection Automatic Reset
Motor Enclosure Totally Enclosed Nonventiliated
Standards Class B NEMA Insulation
HP 0.17 hp
Duty Cycle Continuous
Outlet Gender Female
Outlet Type NPT
Inlet Gender Female
Current Rating 1.5/0.75 A
Maximum Air Temperature Rise 72 Degrees F
Maximum Ambient Temperature 104 Degrees F
Maximum Flow Rate 27 cfm
Weight 19 lb
Frequency 60 Hz
Inlet Type NPT
Enclosure Type Totally Enclosed Fan-Cooled
Output Power 0.16 hp
Maximum Vacuum 26 in wc
Maximum Operating Pressure 27.4 in wc

Description

Ring Compressor, Phase Single, Output Power 0.16 hp, Maximum Operating Pressure 27.4 in wc, Maximum Flow Rate 27 cfm, Maximum Vacuum 26 in wc, Voltage 115/230V AC, Inlet Size 1 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 1 in, Outlet Type NPT, Outlet Gender Female, Current Rating 1.5/0.75 A, Frequency 60 Hz, Housing Material Aluminum
