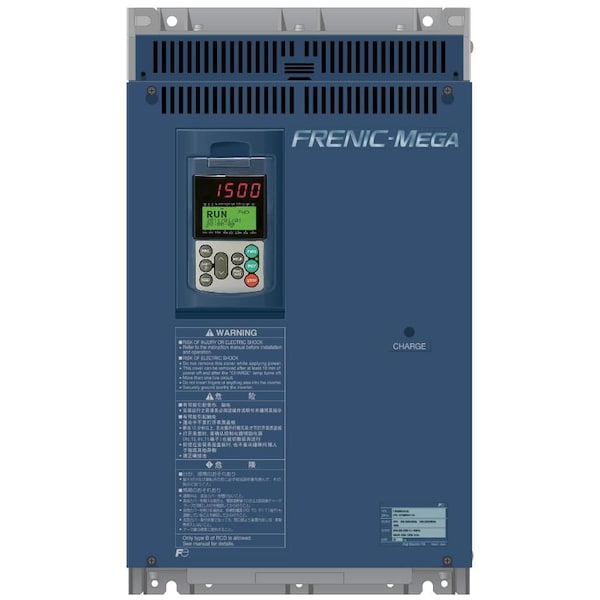

Fuji Electric Variable Frequency Drive, 350 HP, 380-480V FRN350G1S-4U - main

Variable Frequency Drive, 350 HP, 380-480V

  • Mfr # FRN350G1S-4U

  • Zoro # G5214539

product price: $15,149.99
/ea
Item requires special delivery charges. A $180.00 per item surcharge will be applied.

Key Features

Input Frequency
120 Hz
Input Phase AC
1 or 3
Protection
Electronic Thermal Overload 1 through 4 motor, Over Current, Over Voltage, Low Voltage, PG, PID, Heat sink Overheat, Input & output phase loss, Communication Error.
Output Phase AC
3
Displays
LCD Monitor & Green Run Indicator
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FRN350G1S-4U
Zoro #
G5214539
UPC #
-
Country of Origin
Multiple

Dimensions

Height
38.37 in
Depth
14.17 in
Width
26.77 in

Details

Input Frequency
120 Hz
Input Phase AC
1 or 3
Protection
Electronic Thermal Overload 1 through 4 motor, Over Current, Over Voltage, Low Voltage, PG, PID, Heat sink Overheat, Input & output phase loss, Communication Error.
Output Phase AC
3
Displays
LCD Monitor & Green Run Indicator
Standards
cUL and US Listed, CE and RoHS Directives
Output Frequency Range
0 to 500 Hz
Control Method
V/F, Dynamic Torque Vector, V/F Control with Speed Sensor or Dynamic Torque Control with Speed Sensor, Vector Control without Speed Sensor, Vector Control with Speed Sensor and Optional PG Card Mounted
Control Type
Keypad and Terminal
With Line Contactor / No Line Contactor
No Line Contactor
Starting Torque
200%
For Use With
General Purpose and Inverter Duty 3-Phase Motors
Digital Readout
Yes
Enclosure
Open
Adjustable Acceleration Time
0 to 6000 sec
Item
Variable Frequency Drive
Accepts Input Control Signal
4 to 20mA and Digital, 5V DC, Analog 0-10V DC
Adjustable Deceleration Time
0 to 6000 sec
With Bypass / No Bypass
No Bypass
Input Voltage
480V AC
Key Pad Lockout
Yes
Max. HP
350 hp
Torque @ 1 Hz
200 %
Start/Stop Control
Keypad and Terminal
Output Voltage
480V AC
Dynamic Braking
Brake Unit and Resistor Separate Items
Max. Output Amps
377 A
Display Type
LCD Monitor and Green Run Indicator

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC 1 or 3, Input Frequency 120 Hz, Output Voltage 480V AC, Output Phase AC 3, Output Frequency Range 0 to 500 Hz
