  9. 13 to 64 Watts, 1 or 2 Lamps, Electronic Ballast

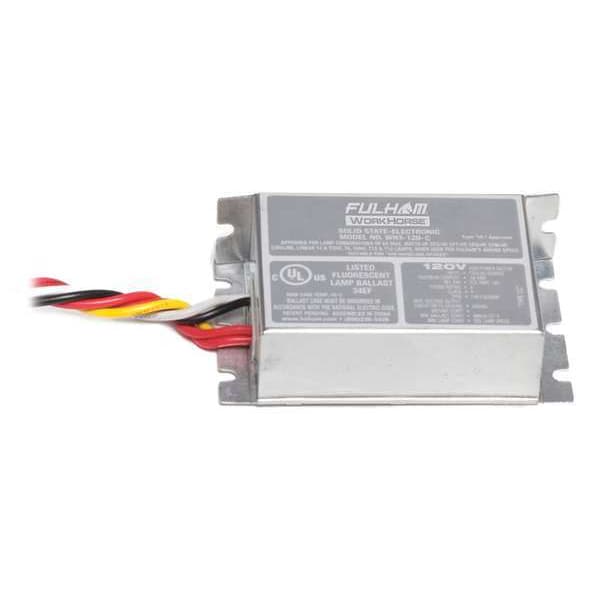

Fulham 13 to 64 Watts, 1 or 2 Lamps, Electronic Ballast WH3-120-C - main

13 to 64 Watts, 1 or 2 Lamps, Electronic Ballast

  • Mfr # WH3-120-C

  • Zoro # G9363864

product price: $31.99
/ea

Key Features

Ballast Lamp Type
Compact Fluorescent, 2D, T2, T5, T5HO, T8, T8HO, T9, T10, T12, T12HO
Ballast Max. Number of Lamps
2
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WH3-120-C
Zoro #
G9363864
UPC #
872180100173
Country of Origin
China

Dimensions

Height
2 13/25 in
Width
1 1/2 in
Length
3 83/100 in

Details

Ballast Lamp Type
Compact Fluorescent, 2D, T2, T5, T5HO, T8, T8HO, T9, T10, T12, T12HO
Item
Fluorescent Ballast
Ballast Max. Number of Lamps
2
Input Voltage
120V AC
Ballast Voltage
120
Ballast Start Type
Instant
Ballast Dimming
No
Ballast Item
Electronic Ballast
Ballast Type
Electronic
Ballast Max. Lamp Watts
64
Ballast Dimming Type
No Dimming
Input Watts
18 to 73 W
Ballast Family
WorkHorse
Number of F48T8 Lamps
1
Power Factor
Greater Than 0.98
Number of F50BX Lamps
1
Ballast Lamp Watts
64
Number of F39T5 Lamps
1
Number of F40T12 Lamps
1
Number of F13T8 Lamps
1 or 2
Number of F34T12 Lamps
1
Number of FC12T5 Lamps
1
Total Harmonic Distortion
42 %
Number of F28T8 Lamps
1 or 2
Number of F32T8 Lamps
1 or 2
Number of F32T8(30W) Lamps
1 or 2
Number of F32T8(26W) Lamps
1 or 2
Ballast Factor
0.99
Number of F60/F64T12 Lamps
1
Number of F60T8 Lamps
1
Number of F30T8 Lamps
1
Amps AC
0.6 A
Number of F32T8(28W) Lamps
1 or 2
Number of F20T12 Lamps
1
Min. Starting Temp.
-22 Degrees F
Number of F18/19T8 Lamps
1
Wiring Type
Parallel
Number of F60/F64T12 Lamps
1
Number of F54T5 Lamps
1
Number of F25T8 Lamps
1 or 2
Number of F32T8U Lamps
1 or 2
Number of F24T5 Lamps
1 or 2
Number of F40BX Lamps
1
Number of F30T12 Lamps
1
Number of F15T8 Lamps
1 or 2
Number of F17T8 Lamps
1 or 2
Number of F25T12 Lamps
1
Light Output
Normal
Number of F40T12 U-Bend Lamps
1
Number of F40T10 Lamps
1
Number of F40T8 Lamps
1
Number of F72T12 Lamps
1
Number of F55BX Lamps
1
Number of F48T12 Lamps
1
Voltage
120
Standards
ANSI C82.11-1993, UL Listed
Fixture Ballast Type
Electronic
Ballast Bulb Type
BX, DBX, T10, T12, T12U, T5, T5-Circuline, T6, T8
Number of F15T12 Lamps
1 or 2
Max. Bulb Watts
12 W, 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 25 W, 28 W, 30 W, 32 W, 34 W, 39 W, 40 W, 42 W, 44 W, 50 W, 54 W, 55 W, 60 W, 75 W, 80 W, 85 W, 100 W
Sockets Included
No
Number of F14/15T8 Lamps
1
Number of F13DBX Lamps
1 or 2
Dimming Type
No Dimming
Brand and Series
WorkHorse
Dimming Method
No Dimming
Number of Bulbs Supported
1, 2
Operating Amps @ 120V
0.6 A
Dimming Range
No Dimming
Number of F14/15T12 Lamps
1
Number of F42T6 Lamps
2
Frequency
50/60 Hz
Starter Required
No
Thermal Protection
Class P
Number of F84T12 Lamps
1
Number of F14T12 Lamps
1
Dimming
No
Hz
50/60
Lamp Types Supported

Description

WorkHorse, Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 120V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 12 W, 13 W, 14 W, 15 W, 17 W, 18 W, 19 W, 20 W, 25 W, 28 W, 30 W, 32 W, 34 W, 39 W, 40 W, 42 W, 44 W, 50 W, 54 W, 55 W, 60 W, 75 W, 80 W, 85 W, 100 W, Ballast Bulb Type BX, DBX, T10, T12, T12U, T5, T5-Circuline, T6, T8, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -22 Degrees F
