  9. CC LED PD, 60W, Univ, 250-1050mA, 0-10V

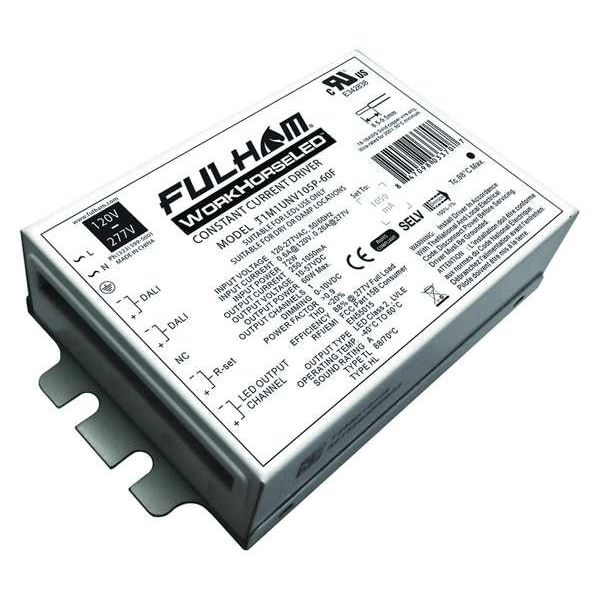

Fulham CC LED PD, 60W, Univ, 250-1050mA, 0-10V T1M1UNV105P-60F - main

CC LED PD, 60W, Univ, 250-1050mA, 0-10V

  • Mfr # T1M1UNV105P-60F

  • Zoro # G1236407

product price: $56.29
/ea

Key Features

Power Output
60W
Environmental Rating
Damp Location
Length
5 in
Width
3 in
Height
1.22 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T1M1UNV105P-60F
Zoro #
G1236407
UPC #
847098033202
Country of Origin
India

Dimensions

Length
5 in
Width
3 in
Height
1.22 in

Details

Item
LED Driver
Power Output
60W
Environmental Rating
Damp Location
For Use With
LED Lighting
Input Voltage
120 to 277V AC
Ballast Dimming
Yes
Power Factor
Greater Than 0.9
Ballast Dimming Type
0-10V
Input Power
72 W
Output Current
250 to 1050 mA
Ambient Temp. Range
-40 Degrees to 140 Degrees F
Input Current
0.60AAC/0.26AAC
Output Voltage
10 to 57V DC
Max. Case Temp.
190 Degrees F
Profile
Standard Profile
Dimming Range
100% to 0%
Dimming Method
0-10V
Output Technology
Programmable
Total Harmonic Distortion
20 %
Brand and Series
WorkHorse
Standards
UL Listed
Driver Class
Class 2
Ouput Constant
Constant Current
Driver Mounting Location
Universal
Case Form Factor
Compact
Dimming Type
Full Continuous Dimming
Intended LED Usage
Fixture Array
Dimming
Yes
Number of Fixtures
1
Power Factor - Minimum
0.9
Max. Ambient Temp.
140 Degrees F
Min. Ambient Temp.
-40 Degrees F
Input Current - Maximum
0.6 A
Power Output - Minimum
2.5 W
Input Current - Minimum
0.26 A
Number of Bulbs Supported
6
Power Output - Maximum
60 W

Description

WorkHorse, LED Driver, Intended LED Usage Fixture Array, Number of Bulbs Supported 6, 120 to 277V AC Input Voltage, 10 to 57V DC Output Voltage, 0.60AAC/0.26AAC Input Current, 250 to 1050 mA Output Current, 72 W Input Power, 60W Power Output, 5 in Length, 3 in Width, 1 1/4 in Height, Case Form Factor Compact, Standard Profile, Class 2
