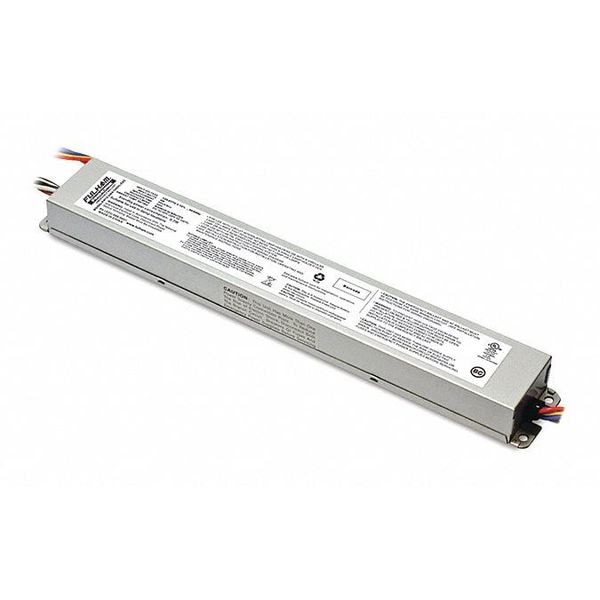

Emergency Lighting Ballast, 1-1/4" H

  • Mfr # FH12-UNV-1400L-CEC

  • Zoro # G5890427


product price: $138.99
/ea
Free Shipping & Returns

Key Features

Item - Emergency Lighting and Exit Signs
Emergency Lighting Ballast
Lamp Watts - Emergency Lighting and Exit Signs
14 to 96
Lamp Type - Fluorescent Lighting Battery Backup Systems
Fluorescent
Initial Lumens - Emergency Lighting and Exit Signs
1400
Housing Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FH12-UNV-1400L-CEC
Zoro #
G5890427
UPC #
847098040286
Country of Origin
China

Dimensions

Length - Emergency Lighting and Exit Signs
14-37/64"
Width
1 1/4 in
Height
1 1/4 in
Length
14 5/8 in
Lamp Length Supported
2 ft, 4 ft, 8ft
Bulb Length Supported - Minimum
8 ft
Bulb Length Supported - Maximum
2 ft

Details

Item - Emergency Lighting and Exit Signs
Emergency Lighting Ballast
Lamp Watts - Emergency Lighting and Exit Signs
14 to 96
Lamp Type - Fluorescent Lighting Battery Backup Systems
Fluorescent
Initial Lumens - Emergency Lighting and Exit Signs
1400
Housing Material
Steel
Voltage - Emergency Lighting and Exit Signs
120 to 277
Number of Lamps Supported
1 or 2
Emergency Illumination Time - Emergency Lighting and Exit Signs
90 min.
Battery Type
Nickel Cadmium
Item
Emergency Fluorescent Ballast
Emergency Illumination Time
90 min
Standards
NEC, NFPA-LSC, UL Listed
Initial Lumens
1400 lm
Input Voltage
120 to 277V AC
Number of Bulbs Supported
1, 2
Frequency
50/60 Hz
Temperature Range
32 Degrees to 131 Degrees F
CA Title 20 Compliant
Yes
Profile
Standard Profile
Max. Bulb Watts
96 W
Wiring Connection
Wiring Attached
Ballast Type
Electronic
Brand and Series
FireHorse
Operating Amps @ 120V
0.06 A
Bulb Watts
14 to 96W
For Use With
Fluorescent Emergency Lighting
Ballast Bulb Type
T10, T12, T12HO, T5, T5HO, T8, T8HO
Recharge Time
24 hr
Meets Class 2 Electrical Wiring
Yes
Operating Temperature - Minimum
32 Degrees F
Compatible Product Type
131 Degrees F
Bulb Wattage - Minimum
14 W
Initial Light Output - Minimum
1,400 lm
Initial Light Output - Maximum
1,400 lm

Description

FireHorse, Electronic, Emergency Fluorescent Ballast, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 96 W, T10, T12, T12HO, T5, T5HO, T8, T8HO Ballast Bulb Type, Initial Lumens 1400 lm, Steel Housing Material, 14 5/8 in Length, 1 1/4 in Width, 1 1/4 in Height, Standard Profile, 90 min Emergency Illumination Time, 24 hr Recharge Time
