Functional Devices-Rib

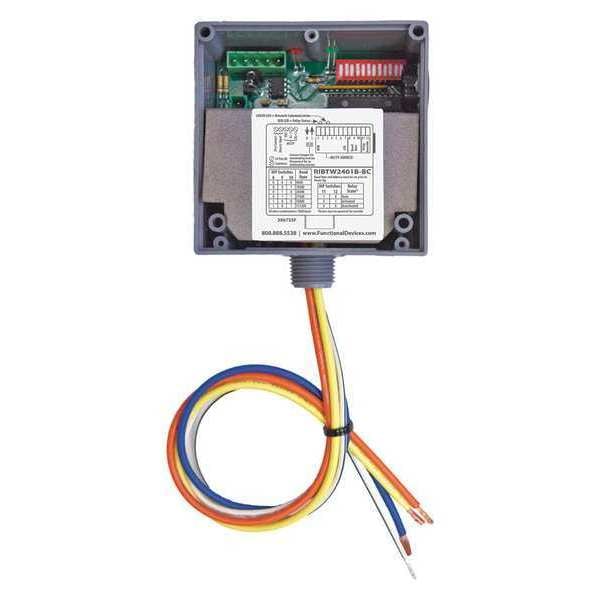

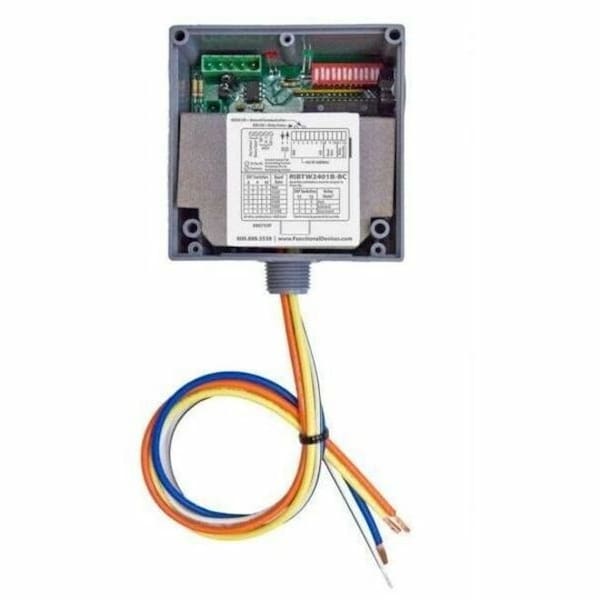

BACnet Network Dual I/O Relay, 24-120Vac

product price: $109.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Dimensions 4" H x 4" W x 1.8" D (10.2 x 10.2 x 4.6 cm); 1/2" NPT nipple
  • Height 1.8
  • Width 4
  • Includes Optional End of Line Resistor (EOL)
  • Mount DIN Rail Mount
See all product information

Product Information

Dimensions

Dimensions 4" H x 4" W x 1.8" D (10.2 x 10.2 x 4.6 cm); 1/2" NPT nipple
Height 1.8
Width 4

Details

Item BACnet Network Dual I/O Relay
Includes Optional End of Line Resistor (EOL)
Mount DIN Rail Mount
Life Expectancy 10 million cycles minimum
Duty Continuous duty
LED Indication Green: network status, Red: relay status
Contact Rating 20A
Baud Rate 9600, 19200, 38400, 57600, 76800, and 115200
Supply Voltage 24 VAC @ 111 mA, 24 VDC @ 81 mA, 120 VAC @ 96 mA
Relay Type SPDT
Type Plastic Box
Conduit Hub 1/2" NPT
Feature LED
Housing Rating NEMA 1
Contact Type 1-SPDT
Operating Humidity 5% to 95% non-condensing
LCD Surface
Communications BACnet
Approvals UL listed file #E68805, CE certified, BACnet certified
Coil Voltage 24 VAC, 24 VDC, 120 VAC
Operating Temperature -30° to 140°F (35° to 60°C)
Frequency 50/60 Hz
Power Input 111 mA @ 24 VAC, 96 mA @ 120 VAC, 81 mA @ 24 VDC

Description

BACnet Network Dual I/O Relay, Includes Optional End of Line Resistor (EOL)
