  6. Class 2 Transformer, 50 VA, Not Rated, 24V AC, 120V AC

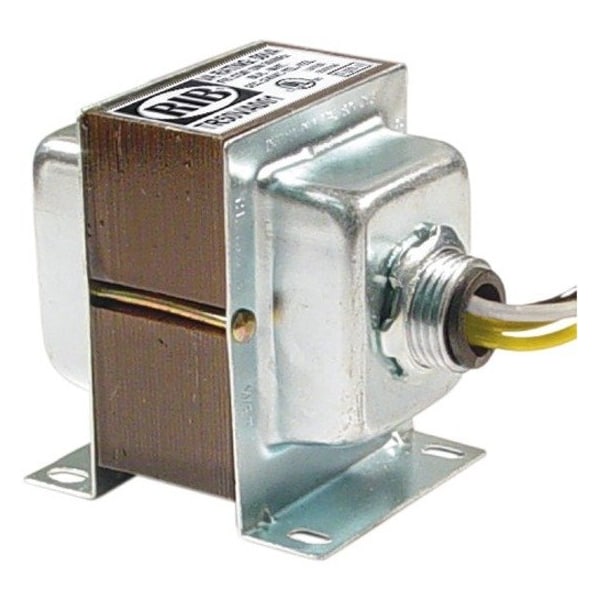

Functional Devices-Rib Class 2 Transformer, 50 VA, Not Rated, 24V AC, 120V AC TR50VA001 - main

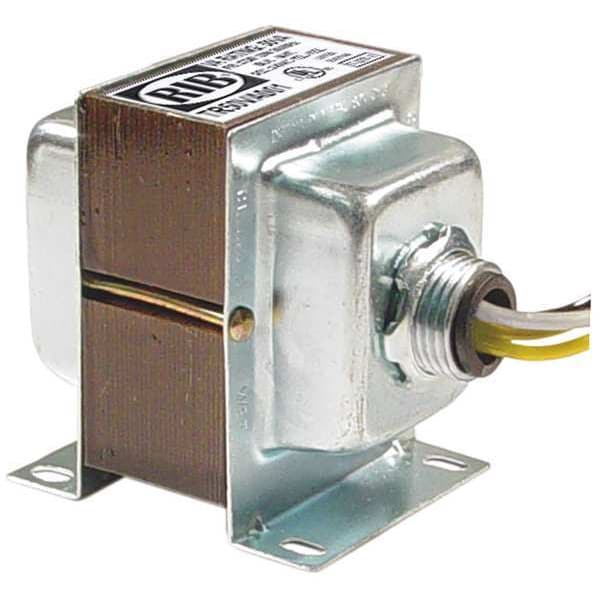

Class 2 Transformer, 50 VA, Not Rated, 24V AC, 120V AC

  • Mfr # TR50VA001

  • Zoro # G5034434

CAD Available
product price:  $30.49
/ea

Key Features

CAD Drawing
Input Voltage - Transformer
120V AC
Output Voltage
24V AC
Power Rating
50 VA
Phase
1
Mounting - Transformer
1/2 in Hub; Foot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TR50VA001
Zoro #
G5034434
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Height
2.87 in
Overall Width
2.67 in
Overall Depth
2.17 in
Manufacturers Warranty Length
5 yr
Wire Lead Length - Secondary
8 in
Wire Lead Length - Primary
8 in

Details

CAD Available
Yes
Item
Class 2 Transformer
Input Voltage - Transformer
120V AC
Output Voltage
24V AC
Power Rating
50 VA
Phase
1
Mounting - Transformer
1/2 in Hub; Foot
Hz - Electrical
50/60 Hz
NEMA Enclosure Rating
Not Rated
Temperature Rise
Not Rated
Standards
CE, RoHS, UL Listed
Includes
Fuse
Enclosure Type
Open
Primary Connection
Pigtails
Enclosure Finish
No Finish
Protective Device
Primary Fuse
Secondary Connection
8 in Leads
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Enclosure Style - Transformer
Open
Application
Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches
Primary Voltage
120 VAC
Termination
Leads
Approvals
Class 2 UL1585 listed US/Canada, E197146
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Connection - Primary
Wire Lead
Connection - Secondary
Wire Lead

Description

Class 2 Transformer, Input Voltage - Transformer 120V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 50 VA, Protective Device Primary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer 1/2 in Hub, Foot, Phase - Electrical 1, Hz - Electrical 50 Hz, 60 Hz, Primary Connection Pigtails, Secondary Connection 8 in Leads, Temp. Rise Not Rated, Enclosure Finish No Finish, Enclosure Rating Not Rated
