  13. Enclosed Pre-Wired Relay, 10A at 277VAC, SPST

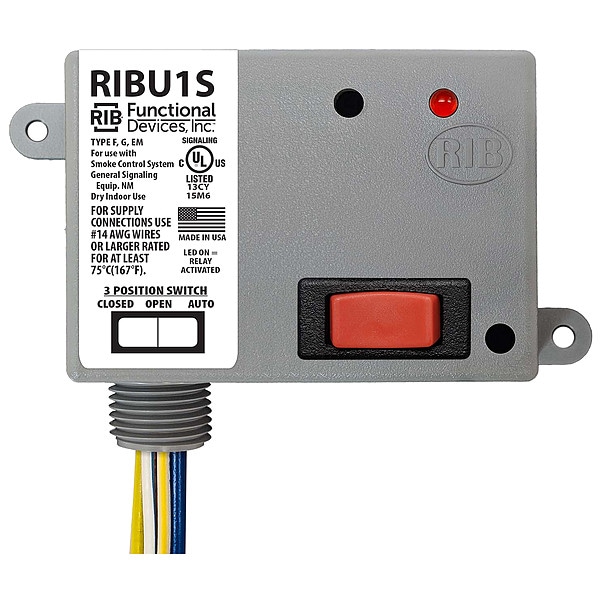

Functional Devices-Rib Enclosed Pre-Wired Relay, 10A at 277VAC, SPST RIBU1S - main

Enclosed Pre-Wired Relay, 10A at 277VAC, SPST

  • Mfr # RIBU1S

  • Zoro # G1465466

product price: $42.69
/ea

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
AC Contact Rating - Relay
10A @ 277V
Contact Form - Relay
SPST-NO
Mounting - Relay
1/2 in Nipple, Surface
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIBU1S
Zoro #
G1465466
UPC #
-
Country of Origin
United States

Dimensions

Body Width - Relay
3.2 in
Nipple Size
0.50 in NPT
Body Height - Relay
2.3 in
Lead Length
16 in
Body Depth - Relay
1.8 in
Dimensions
2.3"H x 3.2"W x 1.8"D
Overall Height - Relay
2.3 in
Body Width
3.2 in
Body Depth
1.8 in
Overall Depth
1.8 in
Body Height
1.8 in

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
10 to 30V AC/DC, 120V AC
AC Contact Rating - Relay
10A @ 277V
Contact Form - Relay
SPST-NO
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
0.6W, 3.4VA
Application
Pilot
Features
Override Switch
Indicator Type
LED
Hz - Electrical
50 Hz, 60 Hz
Hz
50/60
Response Time
20 msec
Item
Enclosed Pre-Wired Relay
HP @ 240V
1/6 hp, 1/3 hp
Contact Material
Gold Flashed Silver Cadmium Oxide
Contact Amp Rating (Resistive)
10A @ 277VAC
HP @ 120V
1/6 hp, 1/3 hp
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
NEMA Enclosure Type
1
Contact Form
SPST-NO
Status Indicator
LED Indicator
Mechanical Operating Durability
10,000,000
Operating Current
10 A at 10 to 30V AC/DC, 10 A at 120V AC
Frequency
50/60 Hz
Maximum Operating Temperature
140 Degrees F
Horsepower @ 120V AC
1/6 hp
For Use With
Exhaust Fans, Motors, Vacuums
Sealing
Enclosed
Coil Voltage
10-30V AC/DC/120V AC
Power Consumption
0.6 W, 3.4 VA
NEMA Enclosure Rating
1
Horsepower @ 240V AC
1/6 hp
Contact Rating (AC)
10 A @ 277V
Mounting Style
Surface
Current Rating
10 A
Minimum Operating Temperature
-30 Degrees F
Input Voltage
10 to 30V AC, 120V AC/DC
Wires
16", 600V Rated
Operating Temperature
-30 to 140° F
Operate Time
20ms
Coil Voltage Input
10-30 Vac/dc ; 120 Vac ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
No. of Relays & Contact Type
One (1) SPST Continuous Duty Coil
Expected Relay Life
10 million cycles minimum mechanical
Gold Flash
Yes
Override Switch
Yes
Humidity Range
5 to 95% (noncondensing)
Approvals
UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Relay Status
LED On - Activated
Coil Current
33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Contact Ratings
10 Amp Resistive @ 277 Vac 480 VA Pilot Duty @ 277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)

Description

Enclosed Pre-Wired Relay, Coil Voltage 10-30V AC/DC/120V AC, Contact Form SPST-NO, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Input Voltage 10 to 30V AC, 120V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 1.8 in, Body Width 3.2 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp, Lead Length 16 in
