  13. Enclosed Pre-Wired Relay, 10A at 30VDC, SPDT

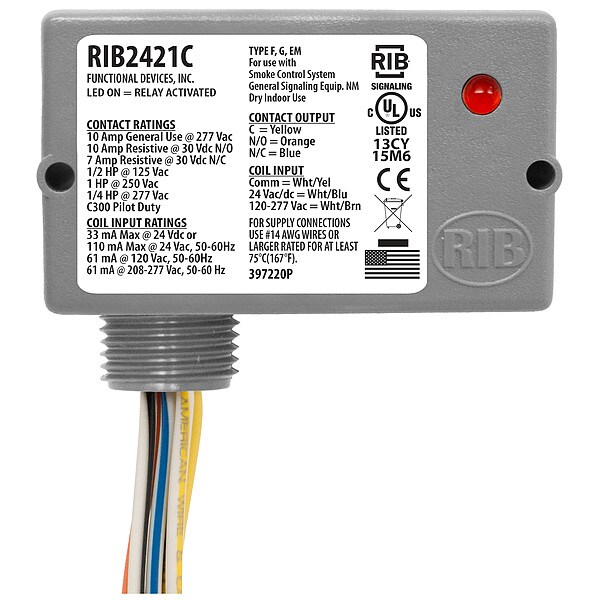

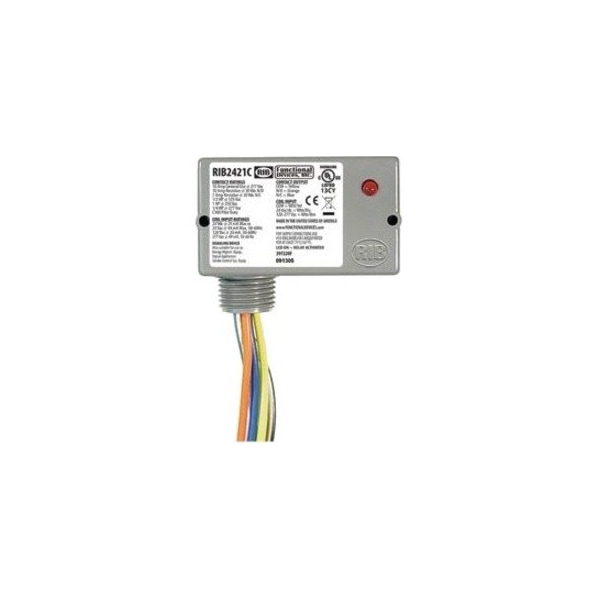

Functional Devices-Rib Enclosed Pre-Wired Relay, 10A at 30VDC, SPDT RIB2421C - main

Enclosed Pre-Wired Relay, 10A at 30VDC, SPDT

  • Mfr # RIB2421C

  • Zoro # G1239716

product price: $33.99
/ea

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 30V (NO), 7A @ 30V (NC)
Contact Form - Relay
SPDT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RIB2421C
Zoro #
G1239716
UPC #
-
Country of Origin
United States

Dimensions

Body Width - Relay
2.8 in
Lead Length
16 in
Body Depth - Relay
1.5 in
Dimensions
1.7"H x 2.8"W x 1.5"D
Body Height - Relay
1.7 in
Nipple Size
0.50 in NPT
Overall Height - Relay
1.7 in
Overall Depth
1.5 in
Body Width
1.7 in
Body Depth
1.5 in
Body Height
2.8 in
Wire Length
16" (40.6 cm)

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
120 to 277V AC, 24V AC/DC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 30V (NO), 7A @ 30V (NC)
Contact Form - Relay
SPDT
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
0.91W, 4.8 to 11.1VA
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
Item
Enclosed Pre-Wired Relay
Contact Form
SPDT
Hz
50/60
Contact Amp Rating (Resistive)
10A @ 30VDC (NO), 7A @ 30VDC (NC)
Hz - Electrical
50 Hz, 60 Hz
HP @ 120V
1/2 hp
Features
1/2 in NPT Nipple, 16 in Wire Leads, LED Indicator, Pilot Duty
Response Time
20 msec
Application
Pilot
NEMA Enclosure Type
1
HP @ 240V
1 hp
Contact Material
Silver Alloy
Indicator Type
LED
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
10,000,000
Operating Current
10 A at 120 to 277V AC, 10 A at 24V AC/DC
Mounting Style
Surface
Current Rating
10 A
Minimum Operating Temperature
-30 Degrees F
Horsepower @ 240V AC
1 hp
Horsepower @ 120V AC
1/2 hp
Status Indicator
LED Indicator
Frequency
50/60 Hz
Coil Voltage
24V AC/DC/120-277V AC
For Use With
Exhaust Fans, Motors, Vacuums
Contact Rating (AC)
10 A @ 277V
Sealing
Enclosed
NEMA Enclosure Rating
1
Contact Rating (DC)
10 A @ 30V
Input Voltage
120/208 to 277V AC/DC, 24V AC
Life Rating
10 million cycles minimum mechanical
LCD
Surface
Operating Temperature
-30° to 140°F(-34° to 60°C)
Contact Rating
10A
Type
Plastic Box
Contact Type
1-SPDT
Housing Rating
NEMA 1
Approvals
UL listed, UL 916 Energy Management, UL 864 Fire, cUL listed, CSFM, UL File S7312
Conduit Hub
1/2" NPT, 3/4" NPT
Operating Humidity
5% to 95% non-condensing
Relay Status
LED, ON - relay activated

Description

Enclosed Pre-Wired Relay, Contact Form SPDT, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 30V, Input Voltage 120/208 to 277V AC/DC, 24V AC, NEMA Enclosure Rating 1, Body Depth 1.5 in, Body Height 2.8 in, Body Width 1.7 in, Contact Material Silver Alloy, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Lead Length 16 in
