Shop FUNCTIONAL DEVICES-RIB

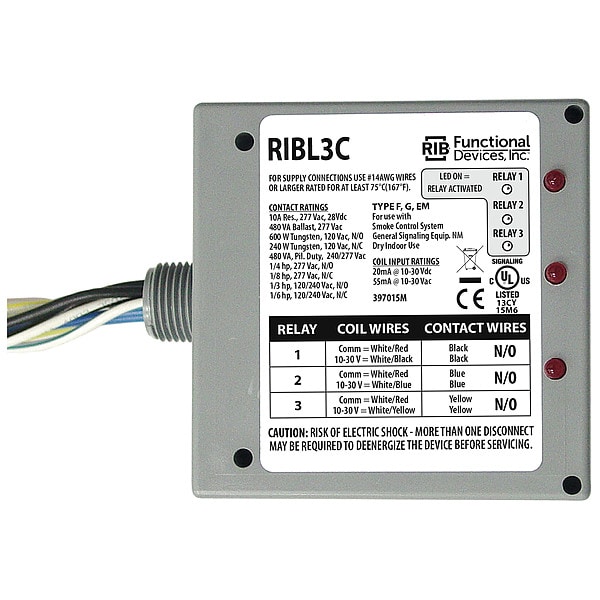

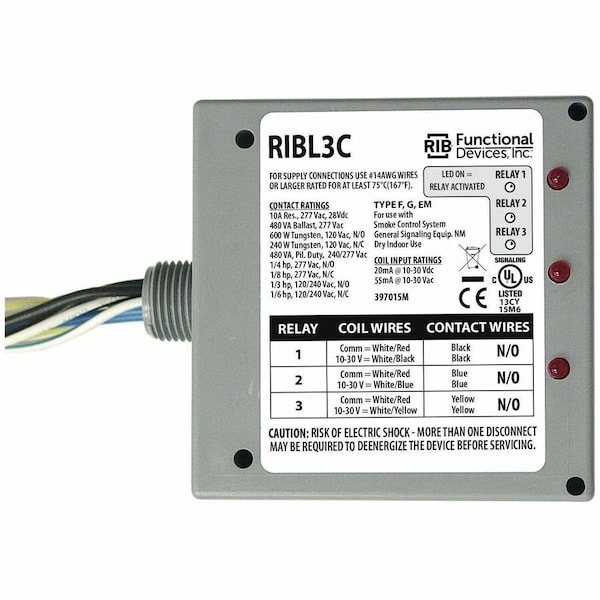

Enclosed PreWired Relay, 10A, (3)SPST, SPDT

  • Mfr # RIBL3C

  • Zoro # G1287736

product price:
$
73.19
/ea

Key Features

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
10 to 30V AC/DC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 28V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RIBL3C
Zoro #
G1287736
UPC #
-
Country of Origin
United States

Dimensions

Overall Height - Relay
4.0 in
Body Height - Relay
4.0 in
Body Depth - Relay
1.8 in
Dimensions
4.0"H x 4.0"W x 1.8"D
Body Width - Relay
4.0 in
Lead Length
16 in
Nipple Size
0.50 in NPT
Body Depth
1.8 in
Overall Depth
1.8 in
Body Height
4 in
Body Width
4 in

Details

Item - Relay
Prewired Relay
Application - Prewired Relay
Pilot Duty
Coil Volts
10 to 30V AC/DC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 28V
Contact Form - Relay
(3) SPST-NO
Mounting - Relay
1/2 in Nipple, Surface
Power Consumption - Relay
0.1 to 0.6W, 0.3 to 1.6VA
Application
Pilot
HP @ 240V
1/6 hp, 1/3 hp
Indicator Type
LED
Item
Enclosed Pre-Wired Relay
Contact Amp Rating (Resistive)
10A @ 277VAC, 10A @ 28VDC
Standards
CE Certified, CSFM, RoHS Compliant, UL 864, UL 916, UL Listed
NEMA Enclosure Type
1
Response Time
20 msec
Contact Material
Gold Flashed Silver Cadmium Oxide
Hz
50/60
HP @ 120V
1/6 hp, 1/3 hp
Hz - Electrical
50 Hz, 60 Hz
Features
1/2 in NPT Nipple, 16 in Wire Leads, LED Indicator, Pilot Duty
Contact Form
3PST-NO
Minimum Operating Temperature
-30 Degrees F
For Use With
Exhaust Fans, Motors, Vacuums
Mounting Style
Surface
Current Rating
10 A
Contact Rating (AC)
10 A @ 277V
Input Voltage
10 to 30V AC/DC
Coil Voltage
10-30V AC/DC
Contact Rating (DC)
10 A @ 28V
Horsepower @ 240V AC
1/6 hp
Mechanical Operating Durability
10,000,000
Maximum Operating Temperature
140 Degrees F
Sealing
Enclosed
Frequency
50/60 Hz
NEMA Enclosure Rating
1
Status Indicator
LED Indicator
Horsepower @ 120V AC
1/6 hp
Operating Current
10 A at 10 to 30V AC/DC
Gold Flash
Yes
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Override Switch
No
Humidity Range
5 to 95% (noncondensing)
Coil Voltage Input
10-30 Vac/dc ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Relay Status
LED On - Activated
Approvals
UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE
Coil Current
33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Operate Time
20ms
No. of Relays & Contact Type
Three (3) SPST Continuous Duty Coil (RIBL3C)
Wires
16", 600V Rated
Contact Ratings
10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Expected Relay Life
10 million cycles minimum mechanical
Operating Temperature
-30 to 140° F

Description

Enclosed Pre-Wired Relay, Coil Voltage 10-30V AC/DC, Contact Form 3PST-NO, Current Rating 10 A, Mounting Style Surface, Nipple Size 0.50 in NPT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Input Voltage 10 to 30V AC/DC, NEMA Enclosure Rating 1, Body Depth 1.8 in, Body Height 4 in, Body Width 4 in, Contact Material Gold Flashed Silver Cadmium Oxide, For Use With Exhaust Fans, Motors, Vacuums, Frequency 50/60 Hz, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp
