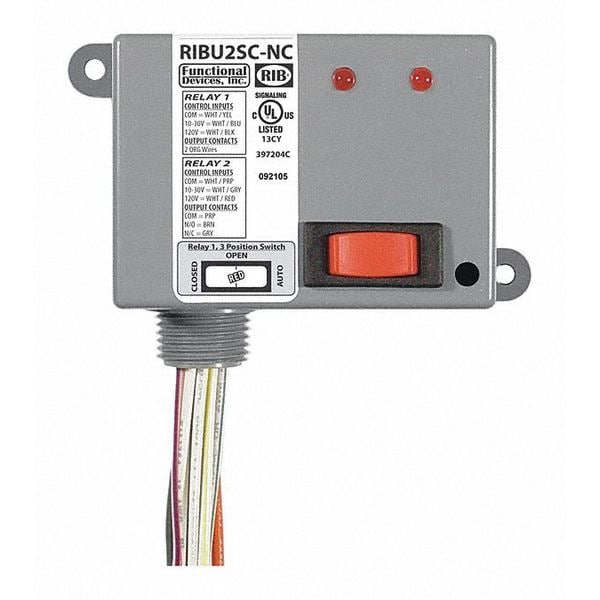

Enclosed Relays, 10A, SPST-N/O

Name: Enclosed Relays, 10A, SPST-N/O
Brand: Functional Devices-Rib
SKU: G3226708
Price: 76.39 USD
Availability: InStock

76.39

/ea

Coil Volts

10V AC to 30V AC, 10V DC to 30V DC, 120V AC

Width

3.2

Dimensions

2.30" x 3.20" x 1.80" with .75" NPT nipple

Height

1.8

Operate Time

20ms

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Coil Volts: 10V AC to 30V AC, 10V DC to 30V DC, 120V AC
Item: Enclosed,10A,SPST-N/O,10-30VAC/DC,120VAC
Operate Time: 20ms
Wires: 16", 600V Rated
Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE
No. of Relays & Contact Type: One (1) SPST + One (1) SPDT Continuous Duty Coil
Relay Status: LED On - Activated
Gold Flash: Yes
Operating Temperature: -30 to 140° F
Contact Ratings: 10 Amp Resistive @ 277 Vac 480 VA Pilot Duty @ 277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
Override Switch: Yes
Expected Relay Life: 10 million cycles minimum mechanical
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Coil Current: 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 28 mA @ 120 Vac 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Switch Position: Normally Closed
Humidity Range: 5 to 95% (noncondensing)
Coil Voltage Input: 10-30 Vac/dc ; 120 Vac ; 50-60 Hz Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc

Pilot Relays, 10 Amp SPST-N/C + Override + 1 SPDT, 10-30 Vac/dc/120 Vac Coil, NEMA 1 Housing
