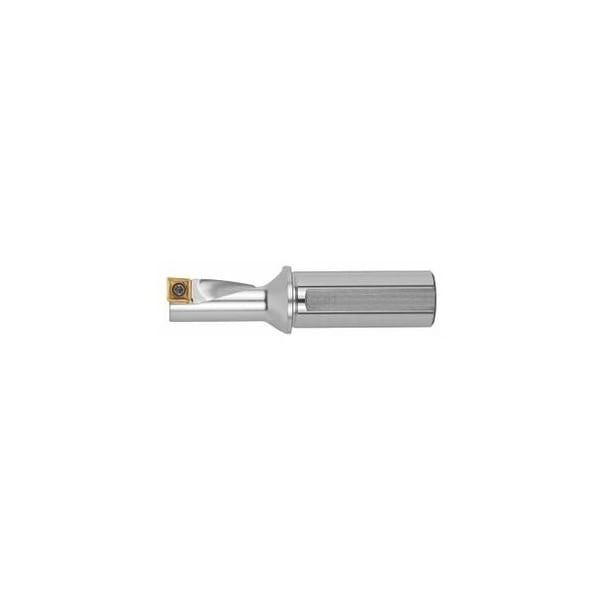

4-in-1 Drilling and Turning Tool, 2.25XD, Left-Hand, Diameter: 14mm
Mfr # 268409 14
Zoro # G214819228
product price: $356.99
/ea
Free Shipping & Returns
Key Features
Shank Length
45 mm
Diameter
14 mm
Overhand Length
38.5 mm
Cutting Direction
Left-Hand
Insert Shape
Parallelogram
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
268409 14
Zoro #
G214819228
UPC #
-
Country of Origin
Czechia
Dimensions
Shank Length
45 mm
Diameter
14 mm
Overhand Length
38.5 mm
Shank Dia.
16 mm
Details
Cutting Direction
Left-Hand
Insert Shape
Parallelogram
Series
4 in 1
Item
Boring bar
Coolant Through
Yes
Reach
31.5 mm
Description
Plain shank with collar. Application: 1. Facing of end faces. 2. Drilling drilling out and drilling from solid - flat drilled hole end. 3. Internal longitudinal turning. 4. External longitudinal turning. Note: Choose corner radii and toolholder size as large as possible. Drilling tolerance + 0.15 mm for drilling processes with a driven tool. When drilling greater than nominal diameter, residual material will remain. Always use internal cooling for drilling at least 5 bar. Through-coolant: yes Overhang LA: 38.5 mm Shank length Ls: 45 mm Reach L1: 31.5 mm Shank Diameters: 16 mm Diameter2: 20 mm suitable indexable insert: ZCMX 07
