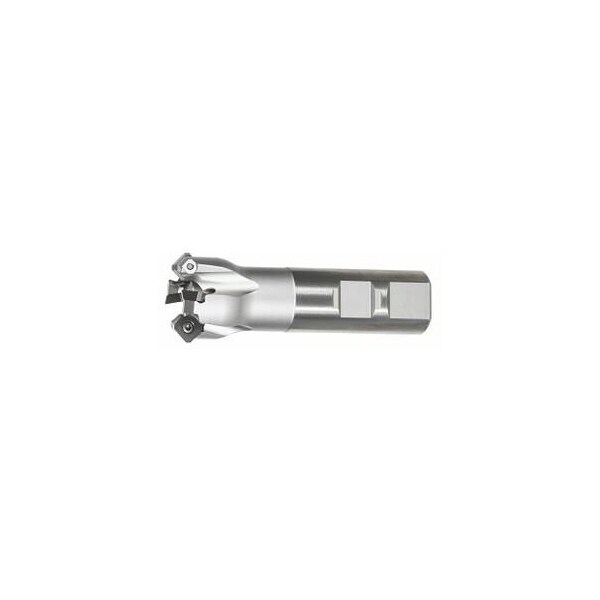

45 Degree Face Mill, with Weldon Flat, 25mm Diameter, 4 Inserts
Mfr # 214395 25/4
Zoro # G116119983
product price:Â $399.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
25 mm
Overall Length
100 mm
Cutting Angle
45°
Insert Screw
219809 (8IP; 1.5 Nm)
Shank Dia.
25 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 214395 25/4
- Zoro #
- G116119983
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 25 mm
- Overall Length
- 100 mm
- Shank Dia.
- 25 mm
- Max. External Dia.
- 33.2 mm
- Ramping Length for αmax
- 22.5 mm
- Diameter 3
- 33 mm
Details
- Item
- Face mill
- Cutting Angle
- 45°
- Insert Screw
- 219809 (8IP; 1.5 Nm)
- Shank Type
- Weldon shank
- Circular Interpolation Milling - Dmax
- 64 mm
- Overhang
- 44 mm
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
- Ramping Angle
- 1.27 mm
- Circular interpolation milling ap
- 1.5 mm
- Dia/No. of Cutting Edges
- 25 mm/4
- Axial Rake Angle
- 6°
- Circular Interpolation Milling - Dmin
- 58 mm
- Fz Helix
- 0.7
- Number of Teeth
- 4
Description
Version: High number of cutting edges for very high productivity. Positive rake for soft cut and low power consumption. Advantage: Very high productivity due to: - Very high cutting speeds. - Very high feed rates. - Short machining times. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.5 with bit No. 674252 size 8IP. Tool exchange: PowerCard maximum externalDmax: 33.2 mm Overhang L1: 44 mm Overall length Ltot: 100 mm ShankDs h6: 25 mm suitable indexable insert: SD... 0903 Circular interpolation millingDmin: 58 mm
