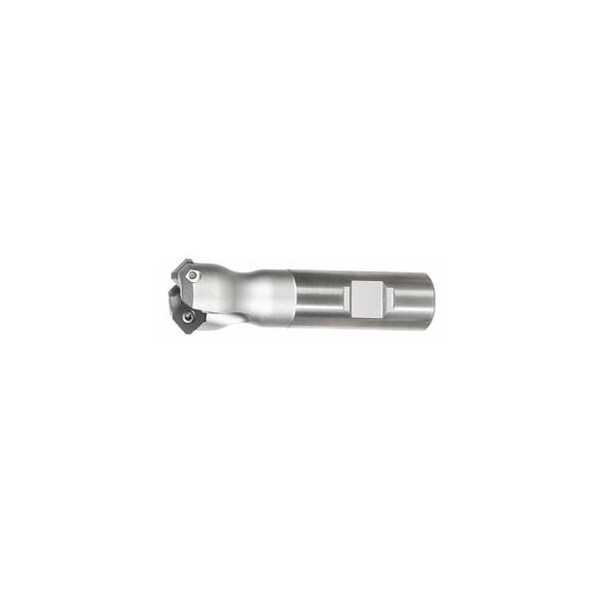

45 Degree Face Mill, with Weldon Flat, 16mm Diameter, 2 Inserts
Mfr # 214395 16/2
Zoro # G816120081
product price:Â $247.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
16 mm
Overall Length
90 mm
Shank Dia.
20 mm
Insert Screw
219809 (8IP; 1.5 Nm)
Cutting Angle
45°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 214395 16/2
- Zoro #
- G816120081
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 16 mm
- Overall Length
- 90 mm
- Shank Dia.
- 20 mm
- Ramping Length for αmax
- 13.5 mm
- Diameter 3
- 24 mm
- Max. External Dia.
- 24.2 mm
Details
- Item
- Face Mill
- Insert Screw
- 219809 (8IP; 1.5 Nm)
- Cutting Angle
- 45°
- Circular Interpolation Milling - Dmax
- 46 mm
- Circular Interpolation Milling - Dmin
- 40 mm
- Overhang
- 40 mm
- Number of Teeth
- 2
- Fz Helix
- 0.7
- Coolant Through
- Yes
- Axial Rake Angle
- 6°
- Ramping Angle
- 2.12 mm
- Dia/No. of Cutting Edges
- 16 mm/2
- Tool Exchange
- PowerCard
- Shank Type
- Weldon shank
- Circular interpolation milling ap
- 1.5 mm
Description
Version: High number of cutting edges for very high productivity. Positive rake for soft cut and low power consumption. Advantage: Very high productivity due to: - Very high cutting speeds. - Very high feed rates. - Short machining times. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.5 with bit No. 674252 size 8IP. Tool exchange: PowerCard maximum externalDmax: 24.2 mm Overhang L1: 40 mm Overall length Ltot: 90 mm ShankDs h6: 20 mm suitable indexable insert: SD... 0903 Circular interpolation millingDmin: 40 mm
