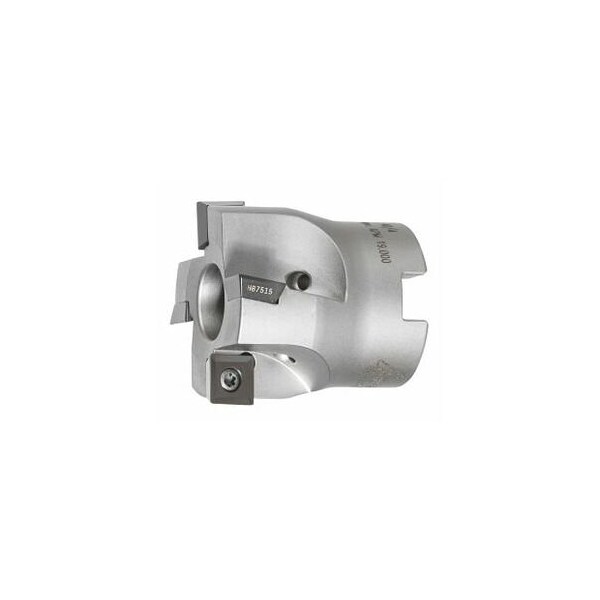

90 Degree Face Mill / Shoulder Mill, with Weldon Flat, 40mm Diameter, 4 Inserts
Mfr # 215050 40/4
Zoro # G516120077
product price: $418.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
40 mm
Overall Length
40 mm
Cutting Angle
90°
Insert Screw
219810 (9IP; 2.2 Nm)
Mounting Bore Dia.
16 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
215050 40/4
Zoro #
G516120077
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
40 mm
Overall Length
40 mm
Mounting Bore Dia.
16 mm
Free length
40 mm
Details
Item
End / face mill
Cutting Angle
90°
Insert Screw
219810 (9IP; 2.2 Nm)
Dia/No. of Cutting Edges
40 mm/4
Coolant Through
Yes
Tool Exchange
PowerCard
Number of Teeth
4
Shank Type
with bore
Description
Version: Made of hardened special steel for low vibration and long life. Very good surface finishes are obtained due to projecting flat cutting edge. Note: To use all 4 cutting edges- the insert always has to be turned in the indicated direction. Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 9IP. Tool exchange: PowerCard Overall length Ltot: 40 mm Mounting bore : 16 mm suitable indexable insert: SOMT 09T304 Pack of insert screws: 219810 9IP- 2.2 Nm
