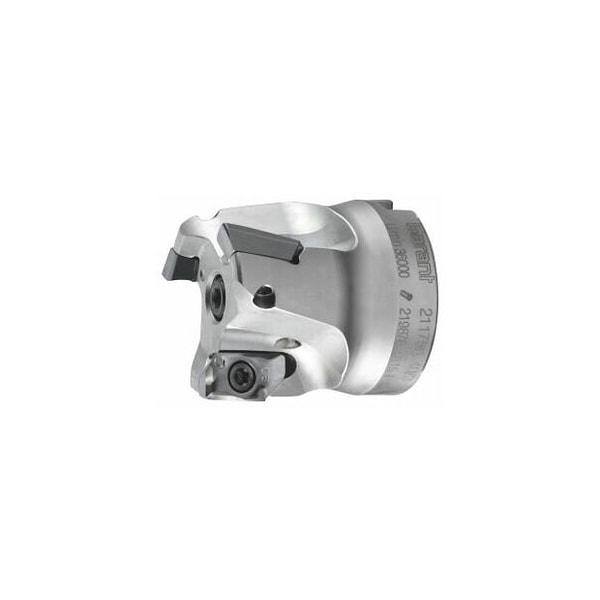

Aluminum Shoulder Mill, with Bore, 40mm Diameter, 3 Inserts
- Mfr # 211759 40/3
- Zoro # G416120122
product price:Â
$
453.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
40 mm
Overall Length
40 mm
Insert Screw
219878 4 (15IP)
Cutting Angle
90°
Mounting Bore Dia.
16 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 211759 40/3
- Zoro #
- G416120122
- UPC #
- -
- Country of Origin
- Luxembourg
Dimensions
- Cutting Dia.
- 40 mm
- Overall Length
- 40 mm
- Mounting Bore Dia.
- 16 mm
- Free length
- 40 mm
- Shank Size
- 16
- Ramping Length for αmax
- 27.56 mm
- Diameter 3
- 30 mm
Details
- Item
- End / face mill
- Insert Screw
- 219878 4 (15IP)
- Cutting Angle
- 90°
- Shank Type
- With Bore
- Circular Interpolation Milling - Dmin
- 70 mm
- Number of Teeth
- 3
- Fz Helix
- 0.8
- Circular Interpolation Milling - Dmax
- 78 mm
- Tool Exchange
- PowerCard
- Coolant Through
- Yes
- Dia/No. of Cutting Edges
- 40 mm/3
- Axial Rake Angle
- 10°
- Circular interpolation milling ap
- 9 mm
- Ramping Angle
- 3.12°
Description
Version: High-performance milling system for high cutting speeds. Absolutely precise insert bedding. Exceptional torsional stiffness thanks to optimised protection against centrifugal force. Attention: Before using the indexable insert No. 211776 ALU r = 5.0 mm and 211777 ALU r = 6.0 mm- the insert seats of the carrier must be modified. Note: The recommended torque for fastening the insert screws No. 219878 4 and 219878 5 is 3.2 Nm. Tool exchange: PowerCard Overall length Ltot: 40 mm Mounting bore : 16 mm Circular interpolation millingDmin: 70 mm Circular interpolation millingDmax: 78 mm Circular interpolation milling ap: 9 mm Ramping angle max: 3.12 degrees
