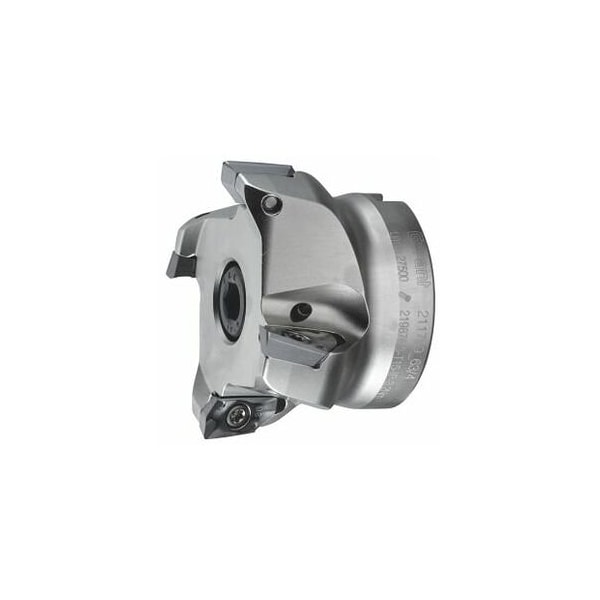

Aluminum Shoulder Mill, with Bore, 63mm Diameter, 4 Inserts
- Mfr # 211759 63/4
- Zoro # G316120116
product price:Â
$
534.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
63 mm
Overall Length
40 mm
Cutting Angle
90°
Insert Screw
219878 5 (15IP)
Number of Teeth
4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 211759 63/4
- Zoro #
- G316120116
- UPC #
- -
- Country of Origin
- Luxembourg
Dimensions
- Cutting Dia.
- 63 mm
- Overall Length
- 40 mm
- Diameter 3
- 53 mm
- Shank Size
- 22
- Free length
- 40 mm
- Ramping Length for αmax
- 50.56 mm
- Mounting Bore Dia.
- 22 mm
Details
- Item
- End / face mill
- Cutting Angle
- 90°
- Insert Screw
- 219878 5 (15IP)
- Number of Teeth
- 4
- Axial Rake Angle
- 10°
- Fz Helix
- 0.8
- Ramping Angle
- 1.7°
- Coolant Through
- Yes
- Circular Interpolation Milling - Dmin
- 116 mm
- Shank Type
- With Bore
- Dia/No. of Cutting Edges
- 63 mm/4
- Circular Interpolation Milling - Dmax
- 124 mm
- Tool Exchange
- PowerCard
- Circular interpolation milling ap
- 8 mm
Description
Version: High-performance milling system for high cutting speeds. Absolutely precise insert bedding. Exceptional torsional stiffness thanks to optimised protection against centrifugal force. Attention: Before using the indexable insert No. 211776 ALU r = 5.0 mm and 211777 ALU r = 6.0 mm- the insert seats of the carrier must be modified. Note: The recommended torque for fastening the insert screws No. 219878 4 and 219878 5 is 3.2 Nm. Tool exchange: PowerCard Overall length Ltot: 40 mm Mounting bore : 22 mm Circular interpolation millingDmin: 116 mm Circular interpolation millingDmax: 124 mm Circular interpolation milling ap: 8 mm Ramping angle max: 1.7 degrees
