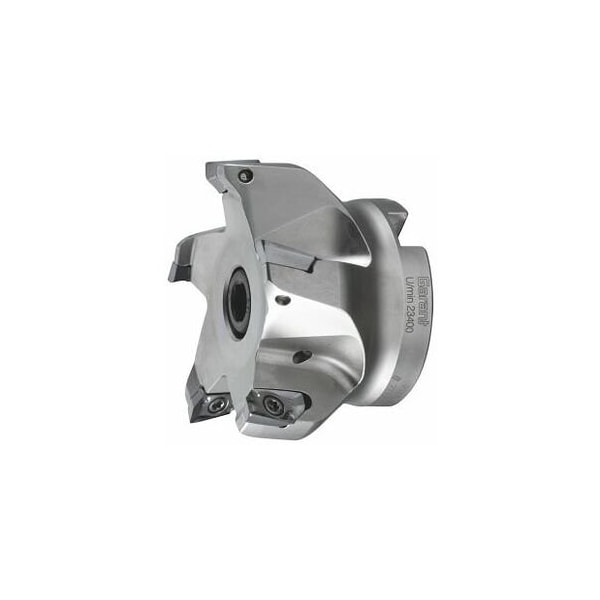

Aluminum Shoulder Mill, with Bore, 80mm Diameter, 5 Inserts
Mfr # 211759 80/5
Zoro # G116120125
product price:Â $663.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
80 mm
Overall Length
50 mm
Insert Screw
219878 5 (15IP)
Cutting Angle
90°
Coolant Through
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 211759 80/5
- Zoro #
- G116120125
- UPC #
- -
- Country of Origin
- Luxembourg
Dimensions
- Cutting Dia.
- 80 mm
- Overall Length
- 50 mm
- Free length
- 50 mm
- Mounting Bore Dia.
- 27 mm
- Diameter 3
- 70 mm
- Ramping Length for αmax
- 67.56 mm
- Shank Size
- 27
Details
- Item
- End / face mill
- Insert Screw
- 219878 5 (15IP)
- Cutting Angle
- 90°
- Coolant Through
- Yes
- Fz Helix
- 0.8
- Dia/No. of Cutting Edges
- 80 mm/5
- Circular Interpolation Milling - Dmin
- 150 mm
- Circular interpolation milling ap
- 7.6 mm
- Number of Teeth
- 5
- Shank Type
- With Bore
- Ramping Angle
- 1.27°
- Tool Exchange
- PowerCard
- Axial Rake Angle
- 10°
- Circular Interpolation Milling - Dmax
- 158 mm
Description
Version: High-performance milling system for high cutting speeds. Absolutely precise insert bedding. Exceptional torsional stiffness thanks to optimised protection against centrifugal force. Attention: Before using the indexable insert No. 211776 ALU r = 5.0 mm and 211777 ALU r = 6.0 mm- the insert seats of the carrier must be modified. Note: The recommended torque for fastening the insert screws No. 219878 4 and 219878 5 is 3.2 Nm. Tool exchange: PowerCard Overall length Ltot: 50 mm Mounting bore : 27 mm Circular interpolation millingDmin: 150 mm Circular interpolation millingDmax: 158 mm Circular interpolation milling ap: 7.6 mm Ramping angle max: 1.27 degrees
