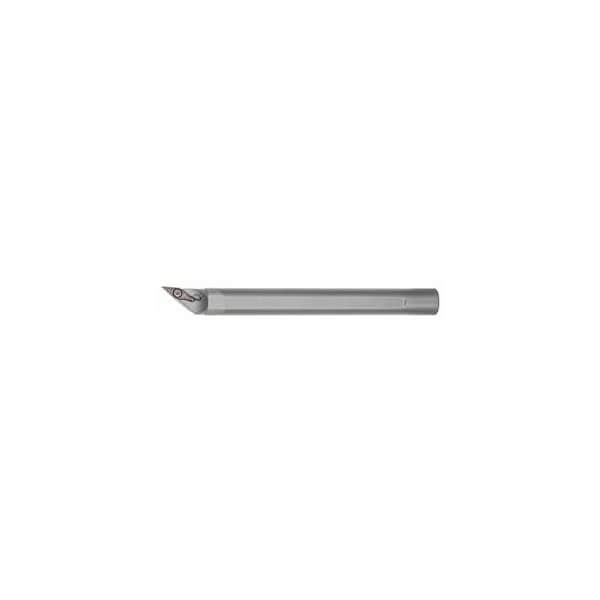

Carbide Boring Bar, E08F SVOCL05, for VC 05 Inserts, Left-Hand
- Mfr # 261377 8/05
- Zoro # G614820350
product price:Â
$
332.99
/ea
Free Shipping & Returns
Key Features
Overall Length
80 mm
Insert Shape
35 Degrees Diamond
Size
8/05
Shank Type
Boring bar
Cutting Direction
Left-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261377 8/05
- Zoro #
- G614820350
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 80 mm
- Size
- 8/05
- Insert Size
- 5 mm
- Min. Pre-Drill Diameter Dmin
- 8 mm
- Shank Dia.
- 8 mm
- Clamping Height
- 7.5 mm
- Head Length
- 26 mm
- Free Length
- 40 mm
- Max. Bore Dia.
- 8 x D
Details
- Item
- Boring Bar
- Insert Shape
- 35 Degrees Diamond
- Shank Type
- Boring bar
- Cutting Direction
- Left-Hand
- Coolant Through
- Yes
- ISO Number
- E08F SVOCR/L05
- Center Offset
- 3 mm
- Application
- Internal longitudinal turning
- Setting Angle
- 140 Angle
- Material
- Carbide
Description
Boring bar carbide 8/05 mmStandard: Works standard Shank Diameters: 8 mm ISO code toolholder: E08F SVOCR/L05 Setting angle k: 140 degrees suitable indexable insert: VC 0501 Minimum pre-drill Diametermin: 8 mm Center offset L3: 3 mm
