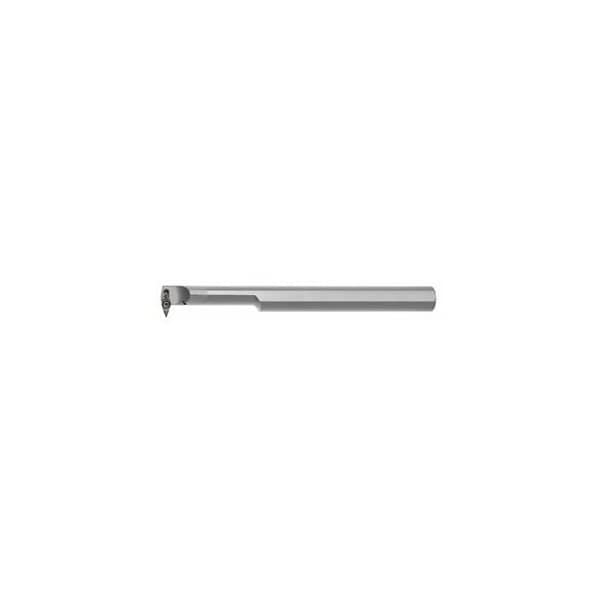

Carbide Boring Bar, E08F SVVCR05, for VC 05 Inserts, Right-Hand
- Mfr # 261336 8/05
- Zoro # G414821441
product price:Â
$
330.99
/ea
Free Shipping & Returns
Key Features
Overall Length
80 mm
Insert Shape
35 Degrees Diamond
Size
8/05
Application
Internal longitudinal turning
Head Length
26 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261336 8/05
- Zoro #
- G414821441
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 80 mm
- Size
- 8/05
- Head Length
- 26 mm
- Insert Size
- 5 mm
- Usable Depth
- 3,5 mm
- Max. Bore Dia.
- 8 x D
- Clamping Height
- 7.5 mm
- Shank Dia.
- 8 mm
- Neck Width
- 6 mm
- Min. Pre-Drill Diameter Dmin
- 10.2 mm
Details
- Item
- Boring bar
- Insert Shape
- 35 Degrees Diamond
- Application
- Internal longitudinal turning
- Coolant Through
- Yes
- Material
- Carbide
- Setting Angle
- 72.5 Angle
- Center Offset
- 5.5 mm
- Cutting Direction
- Right-Hand
- Shank Type
- Boring bar
- ISO Number
- E08F SVVCR/L05
Description
Boring bar carbide 8/05 mmStandard: Works standard Shank Diameters: 8 mm ISO code toolholder: E08F SVVCR/L05 Setting angle k: 72.5 degrees suitable indexable insert: VC 0501 Minimum pre-drill Diametermin: 10.2 mm Center offset L3: 5.5 mm
