Precision Boring Set, with HW63 Connection, Boring Range: 86 mm - 302 mm
Mfr # 237570 HW63
Zoro # G715356376
product price:Â
$
4,088.99
/ea
Free Shipping & Returns
Key Features
Overall Length
122 mm
Shank Dia.
25 mm
Shank
ISO 9766
Overhang
56 mm
Machining Strategy
HPC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 237570 HW63
- Zoro #
- G715356376
- UPC #
- -
- Country of Origin
- Switzerland
Dimensions
- Overall Length
- 122 mm
- Shank Dia.
- 25 mm
- Reach Length
- 39 mm
- Shank Length
- 56 mm
- Depth Limit (Indexable Drill)
- 2 x D
Details
- Item
- Indexable Drill
- Shank
- ISO 9766
- Overhang
- 56 mm
- Machining Strategy
- HPC
- Max. Adjustment Limit
- 0.25 mm
- Point Angle
- 180 Deg
- No. of Cutting Edges
- 1
- Coolant Through
- Yes
- Series
- HOLEX Pro
Description

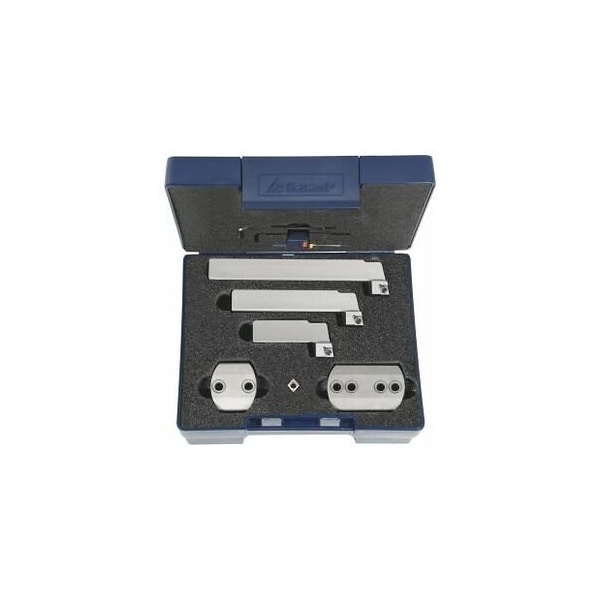

Complete precision boring set for 0 86 302 mm, with fine boring head no. 237571, insert toolholder and accessories in a case. Can be extended with indexable insert holder no. 237573 242-402 up to 0 402 mm. Adjustment accuracy 0.01 mm per graduation/with vernier 0.002 mm on the 0. Application: Insert toolholders with suitable standard ISO insert type CC..09T3.. Supplied with: 1 fine boring head: 237571 HW63 1 each insert toolholder: No. 237573 86-138 for 0 86, 138 No. 237573 136-220 for 0 136, 220 No. 237573 188-302 for 0 188, 302 1 each support: No. 237574 86 for No. 237573 86-138 No. 237574 136 for No. 237573 136-220, 188-302 and 242-402 1 each pressure pad: No. 237575 86 for No. 237573 86-138 No. 237575 136 for No. 237573 136-220, 188-302 and 242-402 1 insert: No. 260058 CU7010 or use CC.. 09T3 Spare part: Insert screw No. 219805. Recommendation: Best with indexable inserts No. 237697 and No. 237698. Through-coolant: yes
