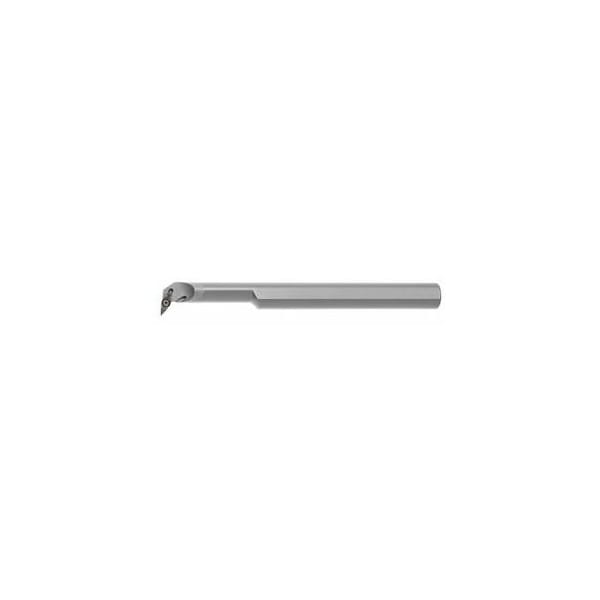

Carbide Boring Bar, E10H SVLCR07, for VC 07 Inserts, Right-Hand
Mfr # 261332 10/07
Zoro # G214820309
product price:Â
$
313.99
/ea
Free Shipping & Returns
Key Features
Overall Length
100 mm
Insert Shape
35 Degrees Diamond
Size
10/07
Application
Internal longitudinal turning
Min. Pre-Drill Diameter Dmin
12.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261332 10/07
- Zoro #
- G214820309
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 100 mm
- Size
- 10/07
- Min. Pre-Drill Diameter Dmin
- 12.5 mm
- Free Length
- 32 mm
- Head Length
- 32 mm
- Max. Bore Dia.
- 8 x D
- Clamping Height
- 9 mm
- Shank Dia.
- 10 mm
- Usable Depth
- 5 mm
- Insert Size
- 7 mm
- Neck Width
- 7.5 mm
Details
- Item
- Boring bar
- Insert Shape
- 35 Degrees Diamond
- Application
- Internal longitudinal turning
- ISO Number
- E10H SVLCR/L07
- Material
- Carbide
- Shank Type
- Boring bar
- Cutting Direction
- Right-Hand
- Center Offset
- 7 mm
- Setting Angle
- 95 Angle
- Coolant Through
- Yes
Description
Boring bar carbide 10/07 mmStandard: Works standard Shank Diameters: 10 mm ISO code toolholder: E10H SVLCR/L07 Setting angle k: 95 degrees suitable indexable insert: VC 0702 Minimum pre-drill Diametermin: 12.5 mm Center offset L3: 7 mm
