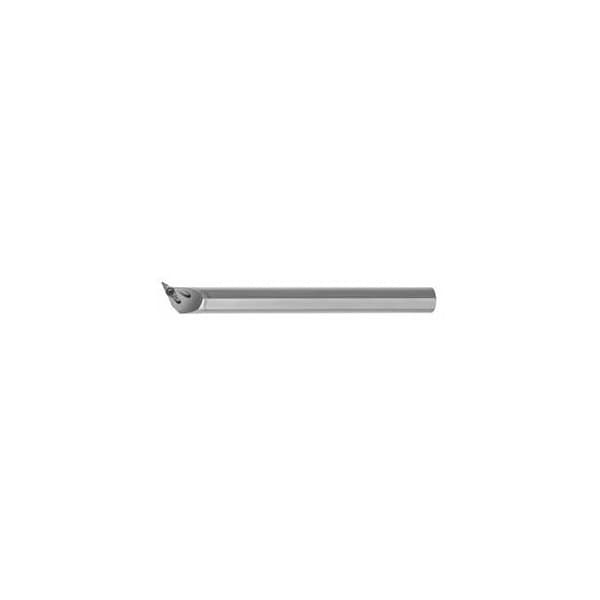

Carbide Boring Bar, E12K SVXCL07, for VC 07 Inserts, Left-Hand
Mfr # 261369 12/07
Zoro # G114820652
product price:Â
$
433.99
/ea
Free Shipping & Returns
Key Features
Overall Length
125 mm
Insert Shape
35 Degrees Diamond
Size
12/07
Usable Depth
3 mm
Max. Bore Dia.
8 x D
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261369 12/07
- Zoro #
- G114820652
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 125 mm
- Size
- 12/07
- Usable Depth
- 3 mm
- Max. Bore Dia.
- 8 x D
- Shank Dia.
- 12 mm
- Head Length
- 40 mm
- Clamping Height
- 11 mm
- Free Length
- 83 mm
- Insert Size
- 7 mm
- Min. Pre-Drill Diameter Dmin
- 15.5 mm
Details
- Item
- Boring bar
- Insert Shape
- 35 Degrees Diamond
- Application
- Internal longitudinal turning
- Setting Angle
- 113 Angle
- Overhang
- 96 mm
- Coolant Through
- Yes
- Material
- Carbide
- Cutting Direction
- Left-Hand
- Shank Type
- Boring bar
- ISO Number
- E12K SVXCR/L07
- Center Offset
- 9 mm
Description
Boring bar carbide 12/07 mmStandard: Works standard Shank Diameters: 12 mm ISO code toolholder: E12K SVXCR/L07 Setting angle k: 113 degrees suitable indexable insert: VC 0702 Minimum pre-drill Diametermin: 15.5 mm Center offset L3: 9 mm
