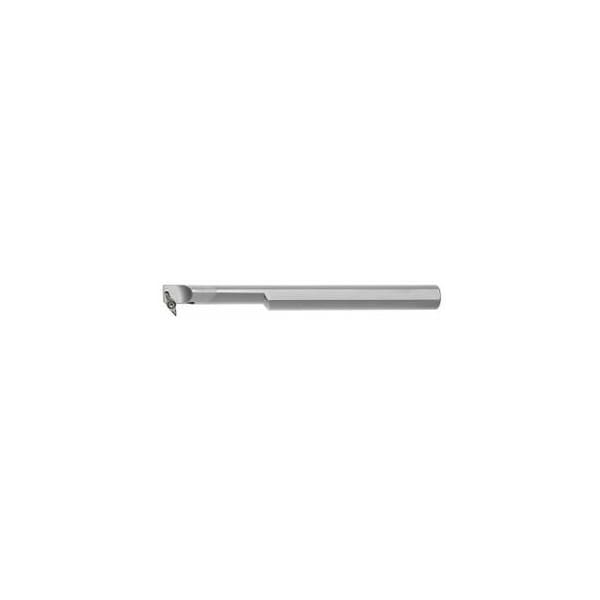

Carbide Boring Bar, E16M SV95CR07, for VC 07 Inserts, Right-Hand
Mfr # 261342 16/07
Zoro # G714821394
product price:Â
$
688.99
/ea
Free Shipping & Returns
Key Features
Overall Length
150 mm
Insert Shape
35 Degrees Diamond
Size
16/07
Insert Size
7 mm
Application
Internal longitudinal turning
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261342 16/07
- Zoro #
- G714821394
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 150 mm
- Size
- 16/07
- Insert Size
- 7 mm
- Min. Pre-Drill Diameter Dmin
- 19.5 mm
- Clamping Height
- 15 mm
- Usable Depth
- 8 mm
- Free Length
- 55 mm
- Neck Width
- 12.9 mm
- Shank Dia.
- 16 mm
- Head Length
- 55 mm
- Max. Bore Dia.
- 8 x D
Details
- Item
- Boring bar
- Insert Shape
- 35 Degrees Diamond
- Application
- Internal longitudinal turning
- Center Offset
- 11 mm
- Shank Type
- Boring bar
- ISO Number
- E16M SV95CR/L07
- Material
- Carbide
- Cutting Direction
- Right-Hand
- Coolant Through
- Yes
- Setting Angle
- 95 Angle
Description
Boring bar carbide 16/07 mmStandard: Works standard Shank Diameters: 16 mm ISO code toolholder: E16M SV95CR/L07 Setting angle k: 95 degrees suitable indexable insert: VC 0702 Minimum pre-drill Diametermin: 19.5 mm Center offset L3: 11 mm
