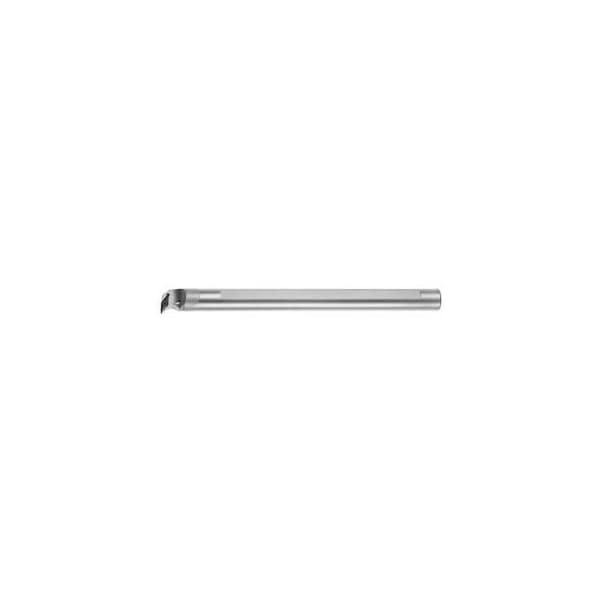

Carbide Boring Bar, E25S SVUBR 11, for VB 2 Inserts, Right-Hand
Mfr # 261118 25/11
Zoro # G014820707
product price:Â
$
1,929.99
/ea
Free Shipping & Returns
Key Features
Overall Length
250 mm
Insert Shape
35 Degrees Diamond
Size
25/11
Standards
DIN 8024
ISO Number
E25S SVUBR/L 11
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261118 25/11
- Zoro #
- G014820707
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 250 mm
- Size
- 25/11
- Max. Bore Dia.
- 8 x D
- Min. Pre-Drill Diameter Dmin
- 31.5 mm
- Insert Size
- 11 mm
- Clamping Height
- 23 mm
- Shank Dia.
- 25 mm
- Head Length
- 23 mm
Details
- Item
- Boring bar
- Insert Shape
- 35 Degrees Diamond
- Standards
- DIN 8024
- ISO Number
- E25S SVUBR/L 11
- Application
- Internal longitudinal turning
- Shank Type
- Boring bar
- Center Offset
- 17 mm
- Setting Angle
- 93 Angle
- Cutting Direction
- Right-Hand
- Material
- Carbide
- Coolant Through
- Yes
Description
Boring bar carbide 25/11 mmStandard: DIN 8024 Shank Diameters: 25 mm ISO code toolholder: E25S SVUBR/L 11 Setting angle k: 93 degrees suitable indexable insert: VB 1103 Minimum pre-drill Diametermin: 31.5 mm Center offset L3: 17 mm
