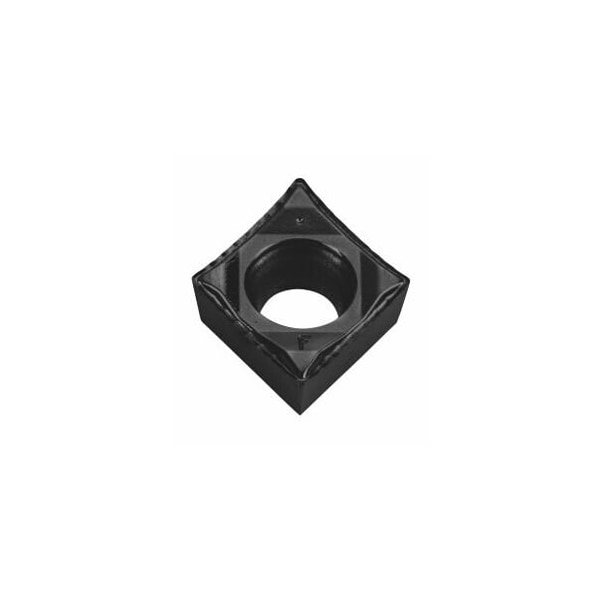

Carbide Turning Insert, Diamond, CCGT32.51 / CCGT09T304, for Aluminum
Mfr # 260058 HB7315-1
Zoro # G314822876
product price:Â
$
16.49
/ea
Sold in multiples of 10 for $164.90
Key Features
Insert Shape
80 Degrees Diamond
Insert Style
CCGT
Inscribed Circle
3
Chip-Breaker
AF
Grade
HB7315-1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260058 HB7315-1
- Zoro #
- G314822876
- UPC #
- -
- Country of Origin
- Austria
Dimensions
- Corner Radius
- 0.4 mm
- Cutting Depth
- 0.05 mm
- Min. Cutting Depth (ap min)
- 0.25 mm
- Max. Cutting Depth (ap max)
- 3.25 mm
- Insert Thickness
- 2.5 mm
Details
- Item
- Indexable Insert for Turning
- Insert Shape
- 80 Degrees Diamond
- Insert Style
- CCGT
- Inscribed Circle
- 3
- Chip-Breaker
- AF
- Grade
- HB7315-1
- Insert Material
- Carbide
- Insert Application
- Finishing
- ISO Number
- CCGT 09T304
- No. of Edges
- 2
- Cutting Conditions
- Continuous
- Tolerance
- G
- Workpiece Material
- Aluminum
Description
CC.T 09T304 HB7315-1 Grade: HB7315-1 Chip breaker: AF Tolerance: G Cutting depth ap: 0.05 0.5 mm Feed f: 0.03 0.1 mm/rev. Cutting speed vc main application: 120 600 m/min
