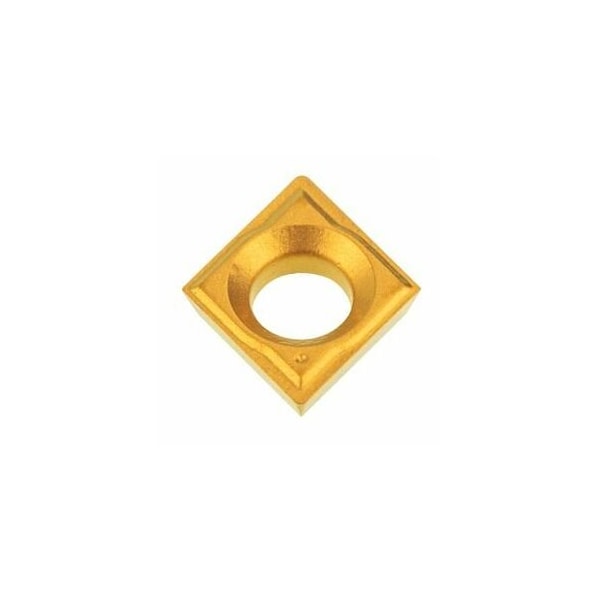

Carbide Turning Insert, Diamond, CDCTS40102, for Steel
Mfr # 268530 HB7035
Zoro # G214821467
product price:Â
$
18.75
/ea
Sold in multiples of 10 for $187.50
Key Features
Insert Shape
80 Degrees Diamond
Insert Style
CDCT
Inscribed Circle
1.2
Insert Size
S40102
Chip-Breaker
SF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 268530 HB7035
- Zoro #
- G214821467
- UPC #
- -
- Country of Origin
- Austria
Dimensions
- Insert Size
- S40102
- Corner Radius
- 0.2 mm
- Max. Cutting Depth (ap max)
- 0.23 mm
- Min. Cutting Depth (ap min)
- 0.05 mm
- Insert Thickness
- 1 mm
- Cutting Depth
- 0.05 mm
Details
- Item
- Indexable Insert for Turning
- Insert Shape
- 80 Degrees Diamond
- Insert Style
- CDCT
- Inscribed Circle
- 1.2
- Chip-Breaker
- SF
- Grade
- HB7035
- Insert Material
- Carbide
- Insert Application
- Finishing
- ISO Number
- CDCT S40102
- Coating
- TiN
- No. of Edges
- 2
- Workpiece Material
- Steel
- Secondary Application
- Cast Iron
- Cutting Conditions
- Continuous
Description
CDCT S40102 HB7035 Grade: HB7035 Chip breaker: SF Cutting depth ap: 0.05 0.23 mm Feed f: 0.03 0.25 mm/rev. Cutting speed vc main application: 60 150 m/min Cutting speed vc secondary application: 60 150 m/min
