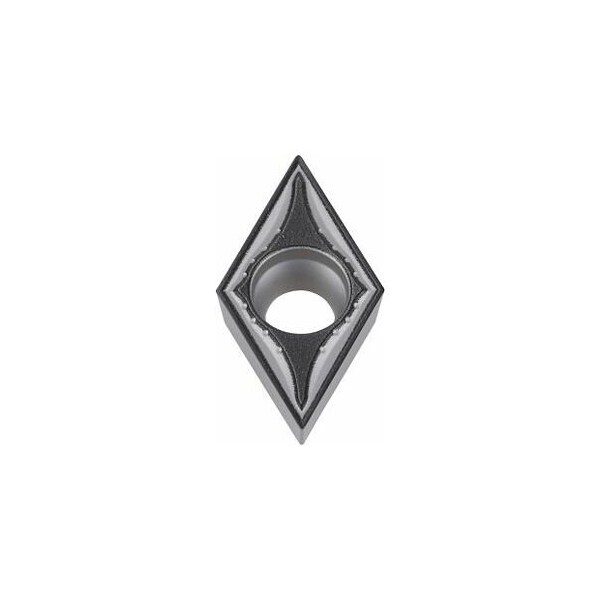

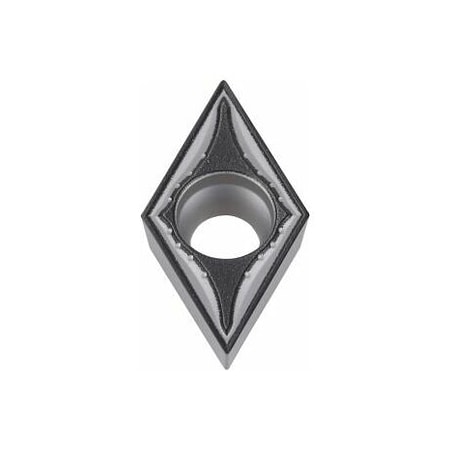

Carbide Turning Insert, Diamond, DCMT11T302, for Stainless Steel (Discontinued)
- Mfr # 260458 HB7120-1
- Zoro # G614822651
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260458 HB7120-1
Zoro #
G614822651
UPC #
-
Country of Origin
Japan
Dimensions
Max. Cutting Depth (ap max)
2.75 mm
Min. Cutting Depth (ap min)
0.15 mm
Corner Radius
0.2 mm
Insert Size
11T302
Cutting Depth
0.5 mm
Insert Thickness
2.5 mm
Details
Insert Style
DCMT
Insert Shape
55 Degrees Diamond
Grade
HB7120-1
Workpiece Material
Stainless Steel
Tolerance
Stainless Steel
Cutting Conditions
Continuous
Insert Application
Roughing-Finishing
Inscribed Circle
3
Insert Material
Carbide
Chip-Breaker
VM
ISO Number
DCMT 11T302
No. of Edges
2
Item
Indexable Insert for Turning
Description
DC.T 11T302 HB7120-1 Grade: HB7120-1 Chip breaker: VM Tolerance: M Cutting depth ap: 0.5 2.5 mm Feed f: 0.1 0.4 mm/rev. Cutting speed vc main application: 80 260 m/min
