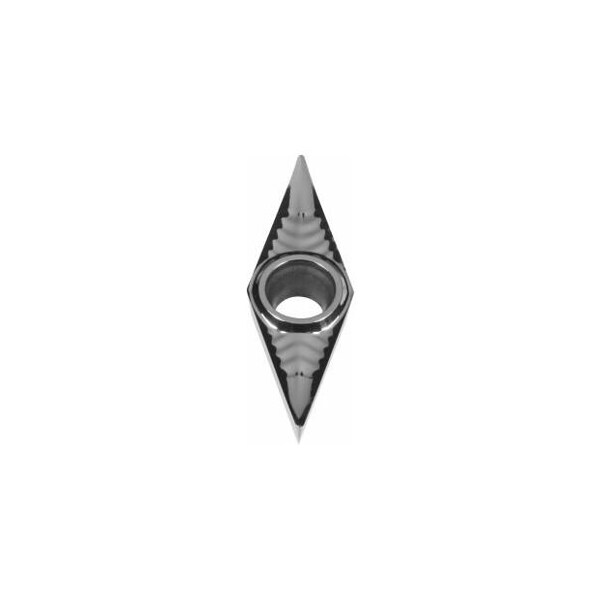

Carbide Turning Insert, Diamond, VBGT332 / VBGT160408, for Aluminum
Mfr # 261234 HU7310
Zoro # G814821454
product price:Â $15.29
/ea
Sold in multiples of 10 for $152.90
Key Features
Insert Shape
35 Degrees Diamond
Insert Style
VBGT
Inscribed Circle
3
Insert Size
332
Chip-Breaker
AM
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
261234 HU7310
Zoro #
G814821454
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Insert Size
332
Corner Radius
0.8 mm
Cutting Depth
0.1 mm
Insert Thickness
3 mm
Min. Cutting Depth (ap min)
0.55 mm
Max. Cutting Depth (ap max)
2.5 mm
Details
Item
Indexable Insert for Turning
Insert Shape
35 Degrees Diamond
Insert Style
VBGT
Inscribed Circle
3
Chip-Breaker
AM
Grade
HU7310
Insert Material
Carbide
Insert Application
Semi-roughing
ISO Number
VBGT 160408
Coating
Uncoated
Tolerance
G
No. of Edges
2
Cutting Conditions
Continuous
Workpiece Material
Aluminum
Description
VB.T 160408 HU7310 Grade: HU7310 Chip breaker: AM Tolerance: G Cutting depth ap: 0.1 4 mm Feed f: 0.05 0.5 mm/rev. Cutting speed vc main application: 350 600 m/min
