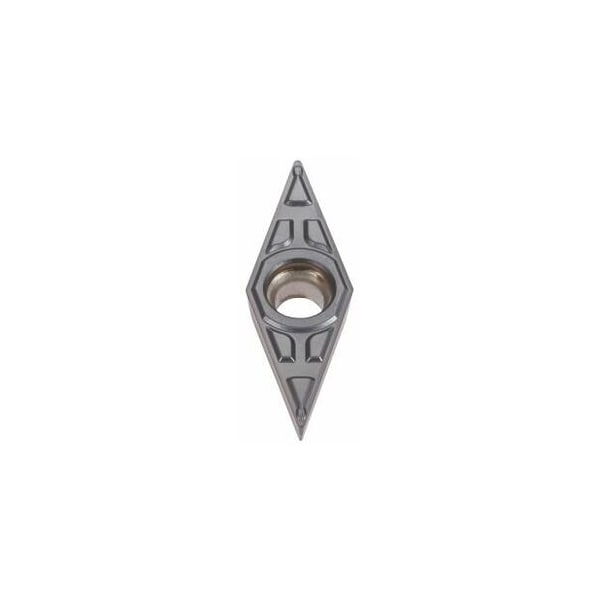

Carbide Turning Insert, Diamond, VC.T332 / VC.T160408, for Stainless Steel
Mfr # 261374 HB7140-2
Zoro # G014821452
product price: $14.99
/ea
Sold in multiples of 10 for $149.90
Key Features
Min. Cutting Depth (ap min)
0.55 mm
Grade
HB7140-2
Cutting Depth
0.2 mm
Inscribed Circle
3
Corner Radius
0.8 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261374 HB7140-2
Zoro #
G014821452
UPC #
-
Country of Origin
Japan
Dimensions
Min. Cutting Depth (ap min)
0.55 mm
Cutting Depth
0.2 mm
Corner Radius
0.8 mm
Insert Thickness
3 mm
Max. Cutting Depth (ap max)
2.5 mm
Insert Size
332
Details
Grade
HB7140-2
Inscribed Circle
3
Insert Material
Carbide
Item
Indexable Insert for Turning
No. of Edges
2
Coating
coated
Insert Application
Finishing
Insert Style
VC.T
Insert Shape
35 Degrees Diamond
ISO Number
VC.T 160408
Tolerance
Stainless Steel
Chip-Breaker
VS
Cutting Conditions
Heavily Interrupted
Workpiece Material
Stainless Steel
Description
VC.T 160408 HB7140-2 Grade: HB7140-2 Chip breaker: VS Tolerance: M Cutting depth ap: 0.2 1.5 mm Feed f: 0.1 0.3 mm/rev. Cutting speed vc main application: 70 230 m/min
