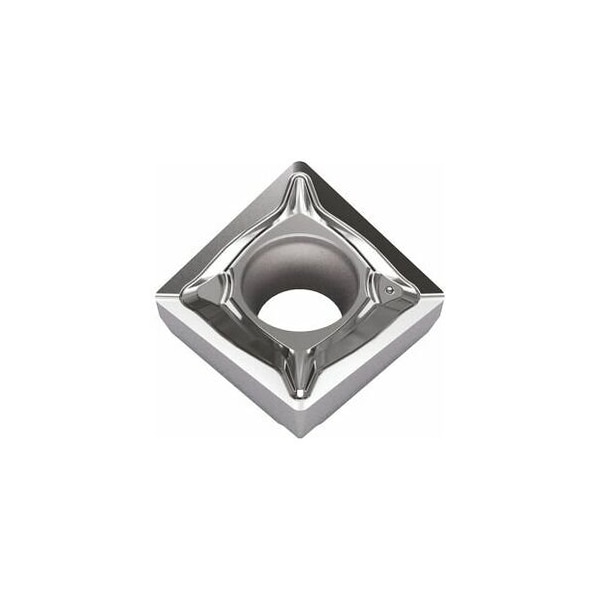

Carbide Turning Insert, Parallelogram, ZCMX09T302, for Aluminum
Mfr # 268437 HUZ310
Zoro # G814821683
product price: $20.89
/eaSold in multiples of 10 for $208.90
Key Features
Insert Style
ZCMX
Corner Radius
0.2 mm
Insert Thickness
2.5 mm
Min. Cutting Depth (ap min)
25 mm
Max. Cutting Depth (ap max)
35 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
268437 HUZ310
Zoro #
G814821683
UPC #
-
Country of Origin
Austria
Dimensions
Corner Radius
0.2 mm
Insert Thickness
2.5 mm
Min. Cutting Depth (ap min)
25 mm
Max. Cutting Depth (ap max)
35 mm
Suitable Tool Diameter
18 mm
Insert Size
09T302
Cutting Depth
0.2 mm
Details
Insert Style
ZCMX
Item
Indexable Insert for Turning
Coating
Uncoated
Workpiece Material
Aluminum
Cutting Conditions
Continuous
Insert Material
Carbide
Insert Shape
Parallelogram
ISO Number
ZCMX 09T302
Grade
HUZ310
Inscribed Circle
9 mm
No. of Edges
2
Description
ZCMX 09T302 HUZ310 Grade: HUZ310 Cutting depth ap: 0.2 4 mm Feed rate f when turning: 0.05 0.4 mm Feed rate f when drilling: 0.03 0.3 mm Cutting speed vc main application: 200 600 m/min
