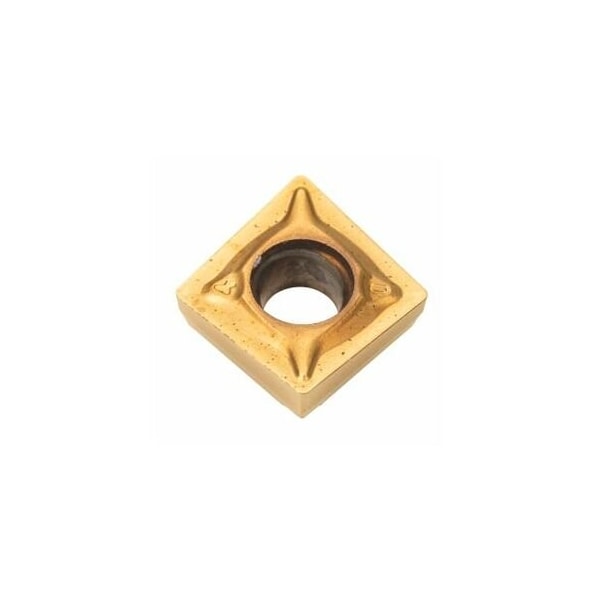

Carbide Turning Insert, Parallelogram, ZCMX10T308, for Steel
Mfr # 268438 HBZ035
Zoro # G814821713
product price: $18.29
/eaSold in multiples of 10 for $182.90
Key Features
Corner Radius
0.4 mm
Insert Shape
Parallelogram
Insert Size
10T308
Inscribed Circle
10 mm
Insert Style
ZCMX
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
268438 HBZ035
Zoro #
G814821713
UPC #
-
Country of Origin
Austria
Dimensions
Corner Radius
0.4 mm
Insert Size
10T308
Min. Cutting Depth (ap min)
0.55 mm
Insert Thickness
2.5 mm
Suitable Tool Diameter
18 mm
Max. Cutting Depth (ap max)
3.5 mm
Cutting Depth
0.4 mm
Details
Insert Shape
Parallelogram
Inscribed Circle
10 mm
Insert Style
ZCMX
Insert Material
Carbide
Workpiece Material
Steel
Cutting Conditions
Slightly Interrupted
Coating
PVD
Item
Indexable Insert for Turning
No. of Edges
2
ISO Number
ZCMX 10T308
Grade
HBZ035
Description
General-purpose medium grit substrate with PVD coating. First choice for turning and drilling applications. Suitable for: Boring tool No. 268463 268468, size 8. suitable for tool dia. Dc: 18 mm Grade: HBZ035 Cutting depth ap: 0.4 2 mm Feed rate f when turning: 0.1 0.3 mm Feed rate f when drilling: 0.03 0.12 mm Cutting speed vc main application: 50 190 m/min
