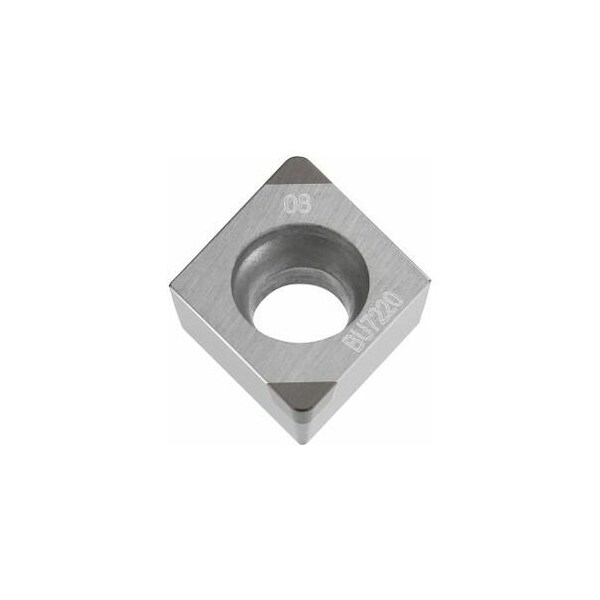

CBN Turning Insert, Diamond, CCGW09T308
Mfr # 265418 G
Zoro # G514821853
product price: $80.59
/ea
Free Shipping & Returns
Key Features
Cutting Edge Version
G
Insert Style
CCGW
Grade
BU7220
Inscribed Circle
3
Cutting Conditions
Heavily Interrupted, Continuous, Slightly Interrupted
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
265418 G
Zoro #
G514821853
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Corner Radius
0.8 mm
Insert Thickness
2.5 mm
Max. Cutting Depth (ap max)
0.12 mm
Min. Cutting Depth (ap min)
0.03 mm
Cutting Depth
0.03 mm
Details
Cutting Edge Version
G
Insert Style
CCGW
Grade
BU7220
Inscribed Circle
3
Cutting Conditions
Heavily Interrupted, Continuous, Slightly Interrupted
Insert Shape
80 Degrees Diamond
Insert Material
CBN
ISO Number
CCGW 09T308
No. of Edges
2
Item
Indexable Insert for Turning
Insert Application
Finishing
Description
Fitted with 2 cutters. Corner radius: 0.8 mm Grade: BU7220 Cutting depth ap: 0.03 0.12 mm Feed f: 0.04 0.12 mm/rev. Cutting speed vc main application: 120 160 m/min Cutting edge G
