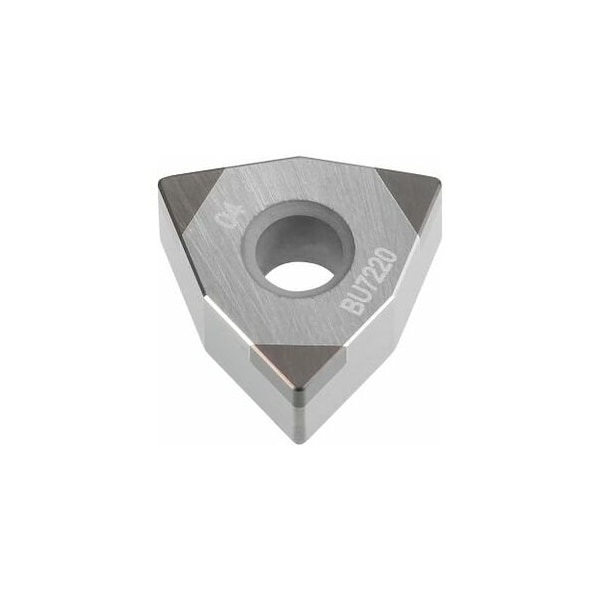

CBN Turning Insert, Trigon, WNGA331 / WNGA060404, for Cast Iron
Mfr # 255469 G
Zoro # G014824101
product price:Â $116.99
/ea
Free Shipping & Returns
Key Features
Insert Shape
Trigon
Insert Style
WNGA
Inscribed Circle
3
Insert Size
331
Grade
BU7220
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 255469 G
- Zoro #
- G014824101
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Insert Size
- 331
- Corner Radius
- 0.4 mm
- Depth of Cut
- 0.05 mm
- Insert Thickness
- 3
- Depth of Cut max
- 0.2 mm
Details
- Insert Shape
- Trigon
- Insert Style
- WNGA
- Inscribed Circle
- 3
- Grade
- BU7220
- Insert Material
- CBN
- Insert Application
- Finishing
- ISO Number
- WNGA 060404
- Feed
- 0.05 mm/rev.
- Number of Inserts
- 3
- Cutting speed
- 90 m/min
- Type
- Indexable insert for turning
Description
Fitted with 3 cutters. Description: New type of CBN with a balanced combination wear-resistance and tensile strength for general-purpose use in hardened steel up to 67 HRC in combination with a special constitution. For use both in continuous cutting and also in slightly interrupted and heavily interrupted cutting. Grade: BU7220 Cutting edge G Cutting depth ap: 0.05 0.2 mm Feed f: 0.05 0.15 mm/rev. Cutting speed vc main application: 90 140 m/min
