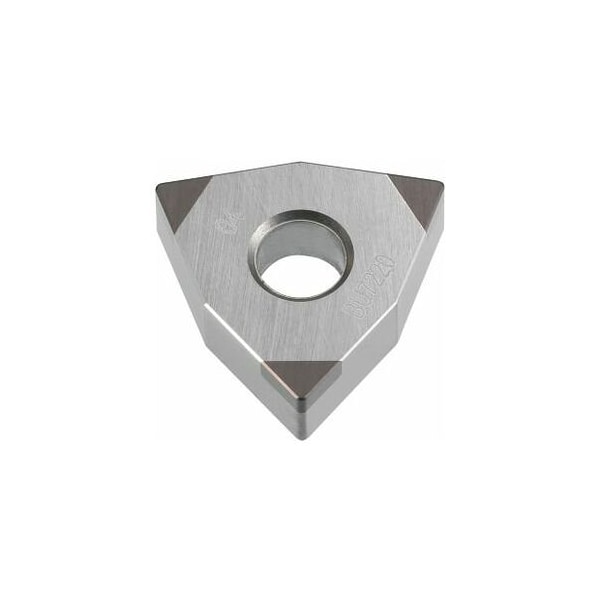

CBN Turning Insert, Trigon, WNGA431 / WNGA080404, for Cast Iron
Mfr # 255475 G
Zoro # G114824162
product price: $116.99
/ea
Free Shipping & Returns
Key Features
Insert Shape
Trigon
Number of Inserts
3
Depth of Cut max
0.2 mm
Cutting speed
90 m/min
Insert Material
CBN
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
255475 G
Zoro #
G114824162
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Depth of Cut max
0.2 mm
Corner Radius
0.4 mm
Depth of Cut
0.05 mm
Insert Size
431
Insert Thickness
3
Details
Insert Shape
Trigon
Number of Inserts
3
Cutting speed
90 m/min
Insert Material
CBN
Type
Indexable insert for turning
Grade
BU7220
Inscribed Circle
4
ISO Number
WNGA 080404
Insert Application
Finishing
Feed
0.05 mm/rev.
Insert Style
WNGA
Description
Fitted with 3 cutters. Description: New type of CBN with a balanced combination wear-resistance and tensile strength for general-purpose use in hardened steel up to 67 HRC in combination with a special constitution. For use both in continuous cutting and also in slightly interrupted and heavily interrupted cutting. Grade: BU7220 Cutting edge G Cutting depth ap: 0.05 0.2 mm Feed f: 0.05 0.15 mm/rev. Cutting speed vc main application: 90 140 m/min
