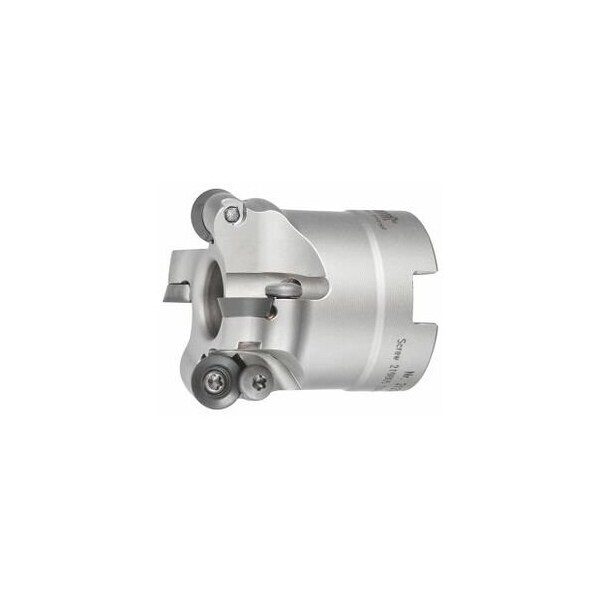

Copy Mill, with Bore, for RD. Inserts, 48mm Diameter, 4 Inserts
Mfr # 212145 48/4
Zoro # G916120134
product price:Â
$
316.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 27°
Cutting Dia.
48 mm
Overall Length
50 mm
Number of Teeth
4
Insert Screw
219805 (15IP; 3.8 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212145 48/4
- Zoro #
- G916120134
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 48 mm
- Overall Length
- 50 mm
- Mounting Bore Dia.
- 22 mm
- Ramping Length for αmax
- 32.94 mm
- Diameter 3
- 36 mm
- Free length
- 50 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 27°
- Number of Teeth
- 4
- Insert Screw
- 219805 (15IP; 3.8 Nm)
- Circular Interpolation Milling - Dmin
- 84 mm
- Circular Interpolation Milling - Dmax
- 94 mm
- Tool Exchange
- PowerCard
- Ramping Angle
- 1.46°
- Shank Type
- with bore
- Coolant Through
- Yes
- Axial Rake Angle
- 0°
- Dia/No. of Cutting Edges
- 48 mm/4
- Milling head suitable for insert shape
- Round
- Approach Angle
- 15 – 27°
- Circular interpolation milling ap
- 2.5 mm
- Fz Helix
- 0.7
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning as the cutting edge wears. Attention: Retaining screws and retaining washers should not be used for inserts with positive geometry. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. ap max = 2.5 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 4D3: 36 mm Overall length Ltot: 50 mm Mounting bore : 22 mm Circular interpolation millingDmin: 84 mm Circular interpolation millingDmax: 94 mm
