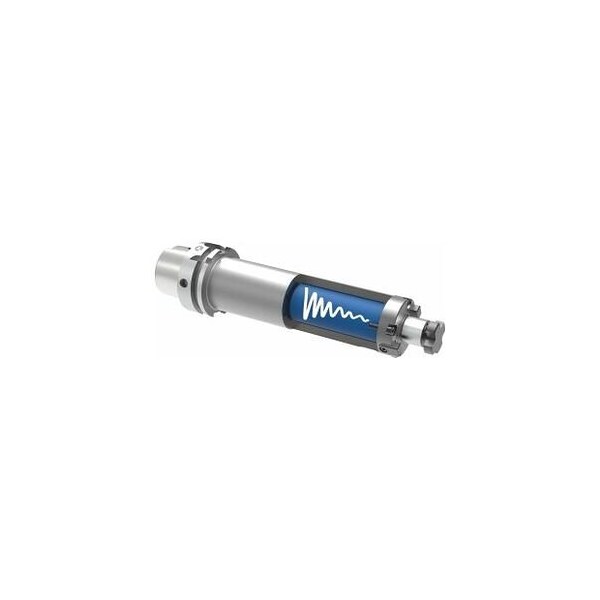

High-Performance Face Mill Arbor, HSK-A 63, Clamping Diameter: 16mm
Mfr # 306693 16
Zoro # G414773214
product price: $6,895.99
/ea
Free Shipping & Returns
Key Features
Machining Strategy
HPC
Milling Mandrel Length
17 mm
Standards
DIN 6357
Projection
300 mm
Outside Dia.
38 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
306693 16
Zoro #
G414773214
UPC #
-
Country of Origin
Germany
Dimensions
Milling Mandrel Length
17 mm
Outside Dia.
38 mm
Spigot Dia.
16 mm
Taper Size
HSK63A
Clamping Dia.
16 mm
Details
Machining Strategy
HPC
Item
Milling head arbor
Standards
DIN 6357
Projection
300 mm
Max. Speed
5000 min-1
Concentricity
≤ 5 µm
Shank Shape
A
Vibration
damped
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. With Balluff/RFID chip bore. Increased collar contact surface. Advantage: The heavy metal core specially matched to the Arbors gives optimum machining results even with long overhangs: Saves time, because allows use of the maximum machining parameters. Smooth running and thus perfect surface quality results. Saves costs, because tool life is increased. Less vibrational stress on the machine headstock. Supplied with: Cutter lock screw and drive dog. Optional extras: Special coolant pipe wrench No. 309840, coolant pipe No. 309880. Note: Balance quality G 6.3 dependent on the maximum operating speed. Overhang dimension A: 300 mm External Dia D: 38 mm Milling mandrel length L4: 17 mm maximum speed nmax: 5000 min-1
