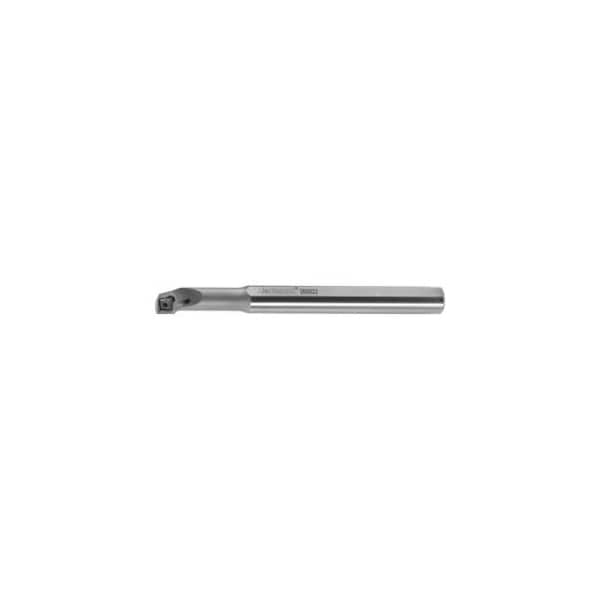

HSS Boring Bar, AH1216M SCLCR06, for CC 2 Inserts, Right-Hand
Mfr # 260022 1216/06
Zoro # G314820766
product price:Â
$
230.99
/ea
Free Shipping & Returns
Key Features
Overall Length
150 mm
Insert Shape
80 Degrees Diamond
Center Offset
9 mm
ISO Number
AH1216M SCLCR/L06
Application
Internal longitudinal turning
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260022 1216/06
- Zoro #
- G314820766
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Overall Length
- 150 mm
- Shank Dia.
- 16 mm
- Head Length
- 50 mm
- Insert Size
- 6 mm
- Neck Width
- 12 mm
- Min. Pre-Drill Diameter Dmin
- 18 mm
- Max. Bore Dia.
- 5 x D
- Clamping Height
- 15 mm
- Size
- 1216/06
Details
- Item
- Boring Bar
- Insert Shape
- 80 Degrees Diamond
- Center Offset
- 9 mm
- ISO Number
- AH1216M SCLCR/L06
- Application
- Internal longitudinal turning
- Shank Type
- Boring bar
- Insert Assignment
- left-hand and neutral
- Coolant Through
- Yes
- Material
- HSS
- Setting Angle
- 95 Angle
- Cutting Direction
- Right-Hand
Description
Boring bar HSS 1216/06 mmStandard: Works standard Shank Diameters: 16 mm ISO code toolholder: AH1216M SCLCR/L06 Setting angle k: 95 degrees suitable indexable insert: CC 0602 Minimum pre-drill Diametermin: 18 mm Center offset L3: 9 mm
