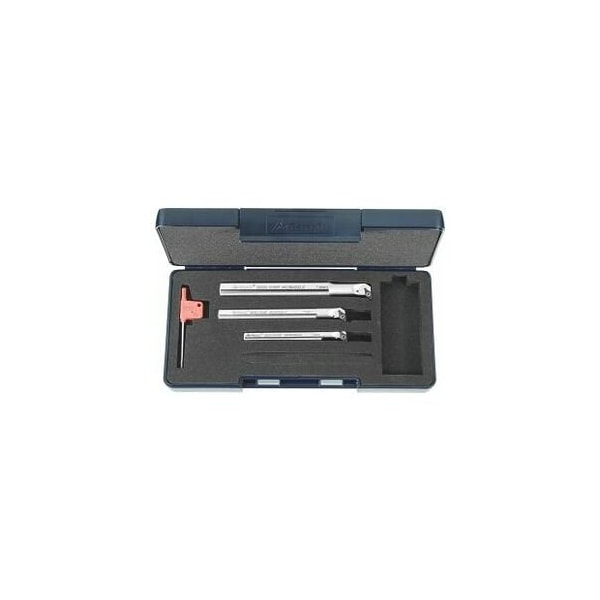

HSS Boring Bar Set, 3 Pieces, for DC 2 Inserts, Left-Hand
Mfr # 260335
Zoro # G514821389
product price:Â
$
416.99
/ea
Free Shipping & Returns
Key Features
Overall Length
100 mm, 125 mm, 150 mm
Insert Shape
55 Degrees Diamond
Usable Depth
5 mm
Center Offset
7 mm, 9 mm, 11 mm
Material
HSS
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260335
- Zoro #
- G514821389
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Overall Length
- 100 mm, 125 mm, 150 mm
- Usable Depth
- 5 mm
- Clamping Height
- 9 mm; 11 mm; 15 mm
- Neck Width
- 8 mm, 10 mm, 12 mm
- Min. Pre-Drill Diameter Dmin
- 12.5 mm; 15.5 mm; 19.5 mm
- Head Length
- 22 mm, 28 mm, 36 mm
- Max. Bore Dia.
- 5 x D
Details
- Item
- Boring bar
- Insert Shape
- 55 Degrees Diamond
- Cutting Direction
- Left-Hand
- Center Offset
- 7 mm, 9 mm, 11 mm
- Material
- HSS
- Coolant Through
- Yes
- ISO Number
- AH0810H SDUCR/L07, AH1216M SDUCR/L07, AH1012K SDUCR/L07
Description
Boring bar set HSS Standard: Works standard ISO code toolholder: AH0810H SDUCR/L07 ISO code toolholder: AH1216M SDUCR/L07 ISO code toolholder: AH1012K SDUCR/L07 suitable indexable insert: DC 0702 Minimum pre-drill Diametermin: 12.5 mm Minimum pre-drill Diametermin: 15.5 mm
