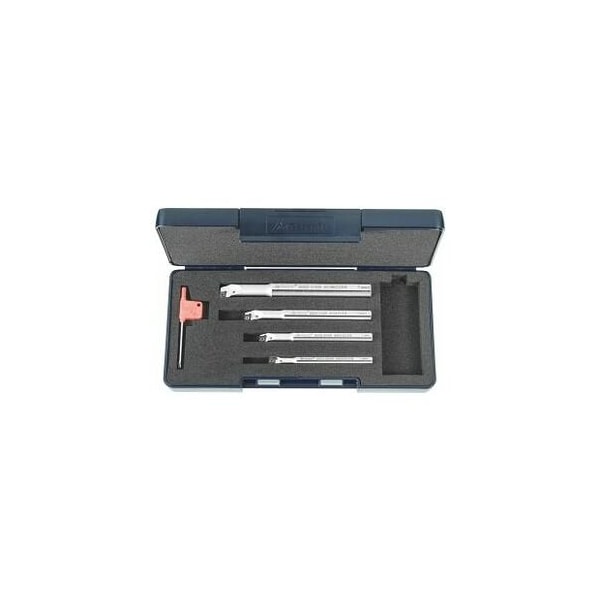

HSS Boring Bar Set, 4 Pieces, for CC 2 Inserts, Right-Hand
- Mfr # 260024
- Zoro # G314820513
product price:Â
$
515.99
/ea
Free Shipping & Returns
Key Features
Overall Length
100 mm, 110 mm, 125 mm, 150 mm
Insert Shape
80 Degrees Diamond
Center Offset
4 mm, 6 mm, 7 mm, 9 mm
Material
HSS
Max. Bore Dia.
5 x D
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260024
- Zoro #
- G314820513
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Overall Length
- 100 mm, 110 mm, 125 mm, 150 mm
- Max. Bore Dia.
- 5 x D
- Clamping Height
- 7 mm; 9 mm; 11 mm; 15 mm
- Neck Width
- 6 mm, 8 mm, 10 mm, 12 mm
- Min. Pre-Drill Diameter Dmin
- 8 mm; 12 mm; 14 mm; 18 mm
Details
- Item
- Boring bar
- Insert Shape
- 80 Degrees Diamond
- Center Offset
- 4 mm, 6 mm, 7 mm, 9 mm
- Cutting Direction
- Right-Hand
- Material
- HSS
- Overhang
- 50 mm, 38 mm, 32 mm, 25 mm
- ISO Number
- AH0810J SCLCR/L06, AH0608H SCLCR/L06, AH1012K SCLCR/L06, AH1216M SCLCR/L06
- Coolant Through
- Yes
Description
Boring bar set HSS Standard: Works standard ISO code toolholder: AH0810J SCLCR/L06 ISO code toolholder: AH0608H SCLCR/L06 ISO code toolholder: AH1012K SCLCR/L06 ISO code toolholder: AH1216M SCLCR/L06 suitable indexable insert: CC 0602 Minimum pre-drill Diametermin: 8 mm
