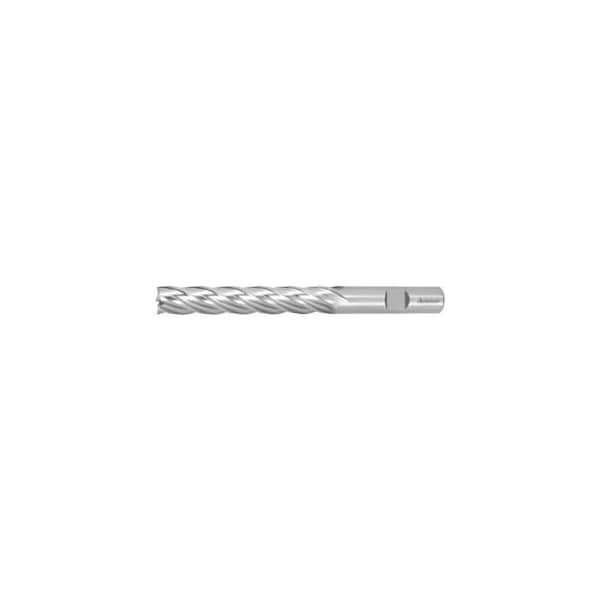

HSS-Co8 End Mill, Uncoated, 12 mm
Mfr # 191620 12
Zoro # G014374385
product price:Â
$
105.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
12 mm
Length of Cut
75 mm
Overall Length
125 mm
Shank Dia.
12 mm
Helix Angle
30 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 191620 12
- Zoro #
- G014374385
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Milling Diameter
- 12 mm
- Length of Cut
- 75 mm
- Overall Length
- 125 mm
- Shank Dia.
- 12 mm
- Tolerance Nominal Diameter
- k10
- Maximum Cutting Depth Ap Max When Side Milling
- 75 mm
- Min. Cutting Depth
- 0.01 mm
Details
- Helix Angle
- 30 Degrees
- Shank Type
- DIN 1835 B to h6
- End Mill Material
- Cobalt High Speed Steel
- Cutting Direction
- horizontal and oblique
- Finish
- uncoated
- Number of Flutes
- 5
- End Mill Style
- Square
- Correction Factor Fz
- 1.25
- Color Ring
- without
- Coolant Through
- no
- Corner Chamfer Angle
- 90 Degrees
- Shank Tolerance
- h6
- Type
- N
- Type of Product
- End Mill
Description
Multi-flute end mill. End face recessed. Advantage: Particularly for machining at recessed or difficult to access places or for milling deep opened ended pockets in one operation.
