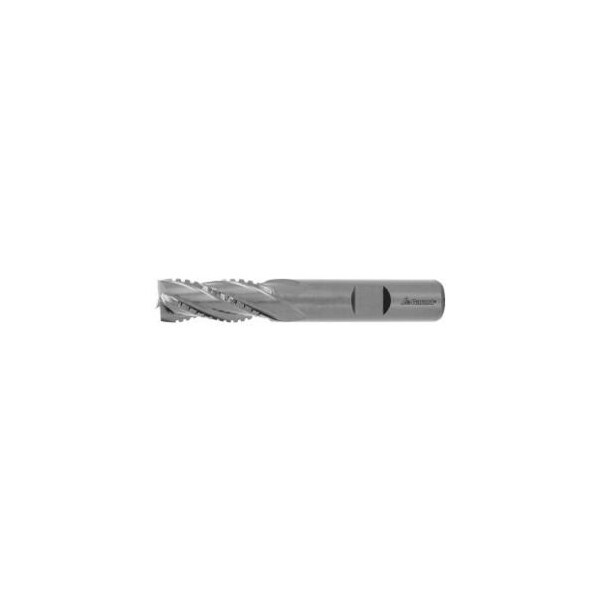

HSS Co8 High Performance End Mill, Uncoated, 9 mm
Mfr # 191850 9
Zoro # G914376274
product price:Â $37.99
/eaKey Features
Milling Diameter
9 mm
Length of Cut
25 mm
Overall Length
75 mm
Shank Dia.
12 mm
Helix Angle
30 Degrees
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 191850 9
- Zoro #
- G914376274
- UPC #
- -
- Country of Origin
- South Africa
Dimensions
- Milling Diameter
- 9 mm
- Length of Cut
- 25 mm
- Overall Length
- 75 mm
- Shank Dia.
- 12 mm
- Min. Cutting Depth
- 0.01 mm
- Tolerance Nominal Diameter
- js12
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 9 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 25 mm
Details
- Helix Angle
- 30 Degrees
- Shank Type
- DIN 1835 B to h6
- End Mill Material
- Cobalt High Speed Steel
- Color Ring
- without
- Correction Factor Fz
- 1.25
- Shank Tolerance
- h6
- Corner Chamfer Angle
- 90 Degrees
- Coolant Through
- no
- Type of Product
- End Mill
- Milling profile
- NF
- End Mill Style
- Square
- Number of Flutes
- 4
- Finish
- uncoated
- Cutting Direction
- horizontal, oblique and vertical
Description
Multi-flute mills with ground chip breaker on flutes. End cutting teeth for plunging. Special surface treatment. Advantage: Applicable as finishing cutter with particularly high cutting performance.
