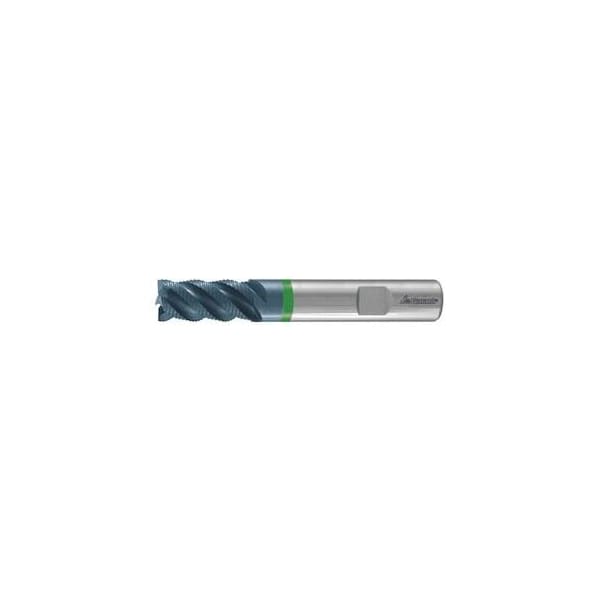

HSS-E-SPM MTC Roughing End Mill, TiAlN Coated, 20 mm
Mfr # 192895 20
Zoro # G314378052
product price: $218.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
20 mm
Length of Cut
38 mm
Helix Angle
45 Degrees
End Mill Style
Chamfer
End Mill Cutting Type
MTC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
192895 20
Zoro #
G314378052
UPC #
-
Country of Origin
Austria
Dimensions
Shank Dia.
20 mm
Length of Cut
38 mm
Milling Diameter
20 mm
Overall Length
104 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
38 mm
Tolerance Nominal Diameter
k12
Maximum Cutting Depth Ap Max When Side Milling
38 mm
Corner Chamfer Width at 45°
0.2 mm
Min. Cutting Depth
0.2 mm
Description
SPM substrate with very high cobalt content. Combines the hardness of solid carbide with the toughness of PM steel. Dynamic special knuckle profile for roughing. For use as a universal roughing end mill Center cutting edge geometry for plunging. Application: For very high metal removal rates and increased machining volumes. Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers.
