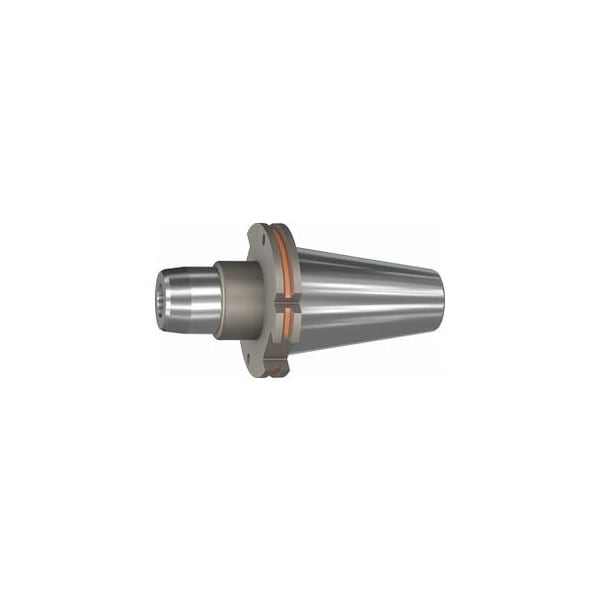

Hydraulic Chuck, Short, Slim, Form ADB, SK50, Clamping Range: 16mm
Mfr # 302053 16
Zoro # G714776687
product price:Â $723.99
/ea
Free Shipping & Returns
Key Features
Outside Dia.
49.5 mm
Projection
80.5 mm
Shape
ADB
Length (In.)
61.5 mm
Clamping Dia.
16 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302053 16
- Zoro #
- G714776687
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Outside Dia.
- 49.5 mm
- Length (In.)
- 61.5 mm
- Clamping Dia.
- 16 mm
- Thread Size
- M12x1
- Dia.
- 38 mm
- Taper Size
- SK50
Details
- Projection
- 80.5 mm
- Shape
- ADB
- Item
- Hydraulic clamping chuck
- Machining Strategy
- HSC
- Balance Quality
- G 2.5 at 25,000 rpm
- Adjustment Travel
- 10 mm
- Concentricity
- ≤ 3 µm
- Coolant Through
- Yes, With Max. 80 Bar
- Standards
- ISO 7388-1
Description
Radial run-out 3 um. With RFID / Balluffchip bore. Axial length adjustment possible, 10 mm adjustment track. Flexible due to use of reducing sleeves. Coolant pressure up to 80 bar. Application: For drilling, reaming and finish milling. Optional extras: Back stop screws for direct clamping / use of reducing sleeves on request. Machining strategy: HSC Clamping Dia D1: 16 mm Overhang dimension A: 80.5 mm Dia D2: 38 mm External Dia D: 49.5 mm Reach L1: 61.5 mm L2: 33 mm
