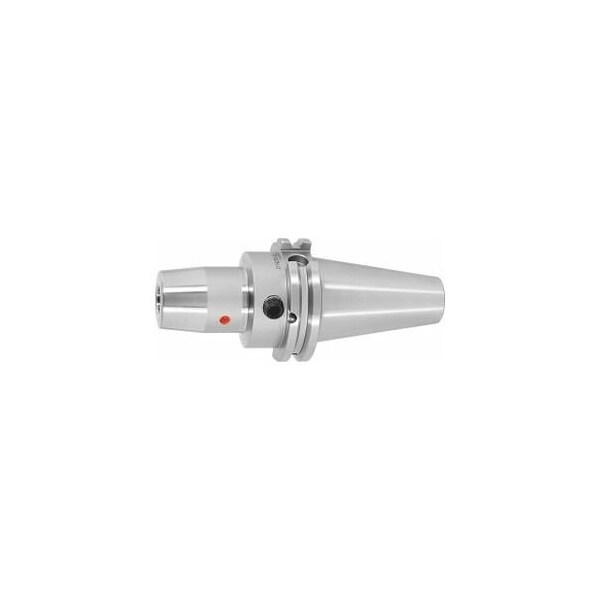

Hydraulic Chuck, Slim, Form ADB, SK 40, Clamping Range: 8mm
Mfr # 302038 8
Zoro # G314773109
product price: $623.99
/ea
Free Shipping & Returns
Key Features
Machining Strategy
HSC
Clamping Dia.
8 mm
Thread Size
M6
Projection
80.5 mm
Dia.
28 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
302038 8
Zoro #
G314773109
UPC #
-
Country of Origin
Germany
Dimensions
Clamping Dia.
8 mm
Thread Size
M6
Dia.
28 mm
Taper Size
SK40
Outside Dia.
49.5 mm
Length (In.)
61.5 mm
Details
Machining Strategy
HSC
Projection
80.5 mm
Item
Hydraulic clamping chuck
Coolant Through
Yes, With Max. 80 Bar
Standards
ISO 7388-1
Shape
ADB
Balance Quality
G 2.5 at 25,000 rpm
Adjustment Travel
10 mm
Concentricity
≤ 3 µm
Description
Radial run-out 3 um. With RFID / Balluffchip bore. Axial length adjustment possible, 10 mm adjustment track. Flexible due to use of reducing sleeves. Coolant pressure up to 80 bar. Application: For drilling, reaming and finish milling. Supplied with: Hexagon socket drive with T-handle. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308810 - 308830, size 12, 20, 32: Reducing adapter No. 302135 302187. Back stop screws for direct clamping / use of reducing sleeves on request. Machining strategy: HSC Clamping Dia D1: 8 mm Overhang dimension A: 80.5 mm Dia D2: 28 mm External Dia D: 49.5 mm Reach L1: 61.5 mm L2: 30 mm
