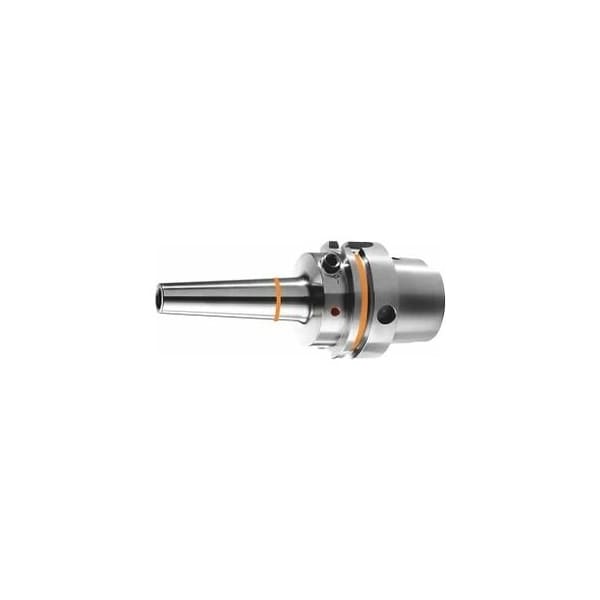

Slim Hydraulic Chuck, HSK-A 100, Projection: 120, Clamping Diameter: 8mm
Mfr # 307543 8
Zoro # G214777122
product price:Â
$
1,263.99
/ea
Free Shipping & Returns
Key Features
Balance Quality
G 2.5 at 25,000 rpm
Shape
A
Concentricity
≤ 3 µm
Outside Dia.
50 mm
Taper Size
HSK100A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 307543 8
- Zoro #
- G214777122
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Outside Dia.
- 50 mm
- Taper Size
- HSK100A
- Clamping Dia.
- 8 mm
Details
- Balance Quality
- G 2.5 at 25,000 rpm
- Item
- Hydraulic clamping chuck
- Shape
- A
- Concentricity
- ≤ 3 µm
- Projection
- 120 mm
Description
Extremely slim design Extra Slim-contour. With RFID/Balluffchip bore. Axial length adjustment possible. Shanks hard turned. Reducing adapters can be used. Advantage: Temperature-resistant due to completely enclosed system, i.e. no soldered pressure chambers. Ideal damping characteristics. High transmissible torques, providing high process reliability. Application: Especially in operations in toolmaking and mould making. Wherever reduced interference contours are required. For drilling, reaming and milling. For clamping tools with shank tolerance h6. Supplied with: Hexagon socket drive with T-handle. Optional extras: Reducing sleeves No. 302135 302165. Clamping Dia D1: 8 mm Overhang dimension A: 120 mm Dia D2: 14 mm Dia D3: 21.45 mm External Dia D: 50 mm L2: 71 mm
